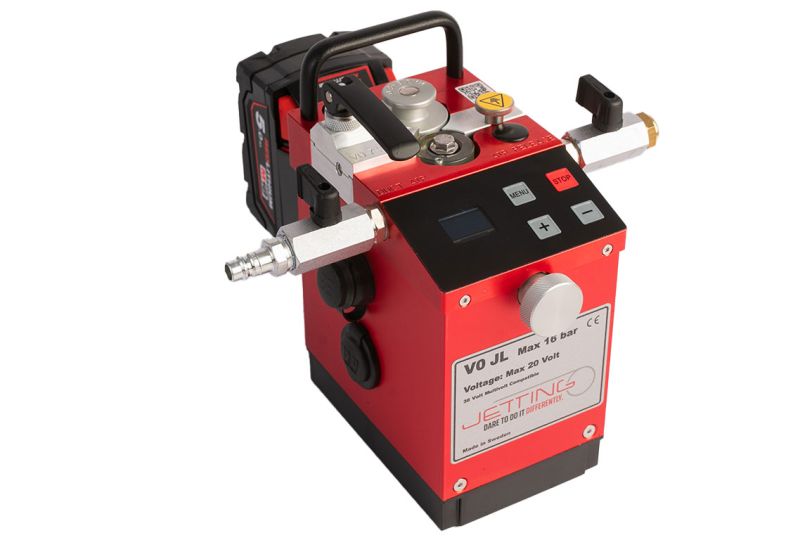

Jetting VO Fiber Blowing Machine with JetLogger Documentation System

The Jetting VO Fiber Blowing Machine with JetLogger is a compact, electrically operated tool designed for efficient fiber optic cable installation in FTTX environments. It handles blown fiber (EPFU) and micro/nano cables ranging from 0.8 to 6 mm (0.03 – 0.24 inches) and supports ducts from 3 to 16 mm (0.12 – 0.63 inches). With advanced digital control, soft-start functionality, and electronic fiber protection, this machine ensures safe and reliable operation, making it ideal for both seasoned professionals and newcomers.

Capable of speeds up to 250 m/min (820ft/min), the Jetting VO Fiber Blower offers real-time performance monitoring via a digital display that tracks speed, distance, cable force, and air pressure. Its memory function stores user-defined settings, such as pushing force, even after power cycles or battery replacements. The machine can be operated directly from its transport case for added convenience, improving portability and efficiency.

The Jetting JetLogger is a professional electronic documentation system that records the fiber-blowing process. Developed in collaboration with installers and network owners, it meets German Telecom’s ZTV TKNetz 40 standards, ensuring accuracy and reliability.

Other Features

• Compact and electrically operated, with battery connection and optional power supply
• Electronic stopping/slipping protection activates within 250 ms
• Adjustable clamping force for compatibility with various cable types
• Memory function retains key settings for consistent performance
• The duct air release valve allows rapid air reduction
• The duct air temperature display provides real-time monitoring

Technical Specifications

• Battery: 18 V, 5 Ah Milwaukee connector
• Max pressure: 16 Bar (232 psi)
• Pushing force: Up to 60 N (13.5 lbs)
• Weight (with transport case): Approx. 13 kg (28.7 lbs)
• Air connection: Standard 3/8” Cejn
• Dimensions (transport case): 600 x 500 x 300 mm (23.6 x 19.7 x 11.8 inches)
