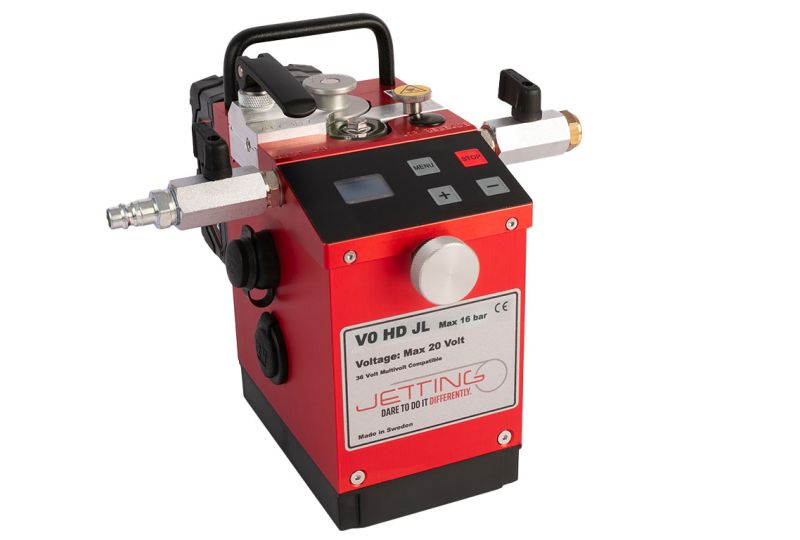

Jetting VO HD Fiber Blowing Machine
V0-HD-CAN
Jetting V0 HD for 0,8-6,5 mm cables with US air connection.
Incl 1 x drive wheel with black rubber, 2 x metal drive wheel, 1 x bottle micro duct lube and a service kit. Excl. Charger & batteries.
Incl 1 x drive wheel with black rubber, 2 x metal drive wheel, 1 x bottle micro duct lube and a service kit. Excl. Charger & batteries.
The Jetting VO HD Fiber Blowing Machine is a compact, electrically operated tool designed for efficient fiber optic cable installation in FTTX environments. Optimized for blown fiber (EPFU) and micro/nano cables ranging from 0.8 to 6.5 mm (0.03 – 0.25 inches), it accommodates ducts sized 3 to 16 mm (0.12 – 0.63 inches). Powered by a 200 N motor, the machine combines advanced digital control with soft-start functionality, electronic stopping/slipping protection, and adjustable clamping force to ensure reliable, safe operation. Its versatile design enables installation in larger ducts using smaller compressors and allows for easy operation directly from a worktable with the included table bracket.
With real-time performance monitoring, the Jetting VO HD provides a display that shows speed, distance, pushing force, pressure, and duct air temperature. Memory functions retain user-defined settings, such as pushing force, even when powered off or after battery replacement. Additionally, the machine tracks total mileage and operational history for service and maintenance planning.
Other Features:
With real-time performance monitoring, the Jetting VO HD provides a display that shows speed, distance, pushing force, pressure, and duct air temperature. Memory functions retain user-defined settings, such as pushing force, even when powered off or after battery replacement. Additionally, the machine tracks total mileage and operational history for service and maintenance planning.
Other Features:
- Max speed of 110 m/min (360 ft/min).
- Includes a table bracket for stable operation, a metal drive wheel for cables under 2.5 mm, and memory functions for retaining key settings.
- Tracks total operational mileage and history for maintenance planning.
- Battery: 18 V, 5 Ah Milwaukee connector
- Max Pressure: 16 Bar (232 psi)
- Pushing Force: Up to 200 N (44.9 lbs)
- Weight (with transport case): Approx. 2 kg (4.4 lbs)
- Air Connection: Standard 3/8” Cejn
- Dimensions (transport case): 120 x 220 x 170 mm (4.7 x 8.6 x 6.6 inches)
