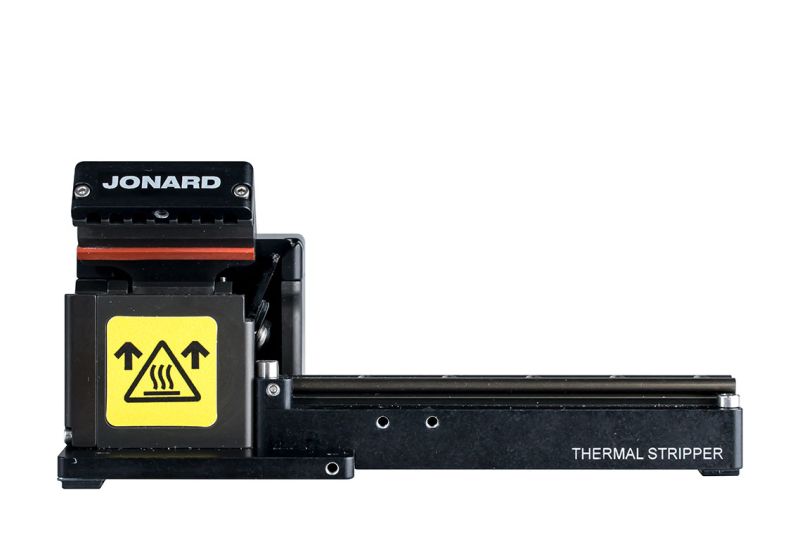

Jonard Tools® TSFB-125 Thermal Single Fiber Stripper - Fixed Blade

The Jonard Tools^® TSFB-125 Thermal Stripper is a compact, easy-to-use fiber optic stripping tool designed to thermo-mechanically remove coatings from optical fibers. The heater is adjustable up to 392°F (200°C), far hotter than competing products, allowing users to strip extremely difficult or baked-on coatings and, in some cases, remove fluoroacrylate undercoatings.

This fixed blade thermal stripper supports standard 125 μm optical fibers, including 250 μm, 400 μm, and 900 μm coated fibers. Adjustable temperature and time settings enable precise stripping across a variety of coatings. The self-centering blade design provides high-strength performance, surpassing previous flat-blade strippers.

Features:

• Heater adjustable up to 392°F (200°C) for extreme coatings
• Can remove some fluoroacrylate undercoatings using high heat
• Adjustable temperature and time settings for a wide range of fiber coatings
• Supports fibers with 125 μm cladding and buffer diameters from 250–900 μm
• Compact, low-maintenance benchtop design
• Compatible with Fitel, Fujikura, Ericsson fiber holder platforms, and a Universal Clamp for LDF or other fibers (sold separately)
• Package includes: Fixed Thermal Stripper, Power Supply, Power Cord, Cleaning Brush

Specifications:

• Blade Type: Fixed
• Supported Fiber Buffers: 250 µm-900 µm
• Supported Fiber Types: 125 µm cladding
• Adjustable Temperature Range: 140–392°F (60–200°C), or ambient
• Adjustable Heat Time Range: 0-30 seconds (2-second increments)
• External Power Supply: 100-240 VAC, 47-63 Hz
• Dimensions: 5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm)
• Weight: 2.56 lbs (1.161 Kg)
• UPC # 811490011236
