Micro-Strip Stripper, .0100 (254um) Blade, .0210 (533um) Guide

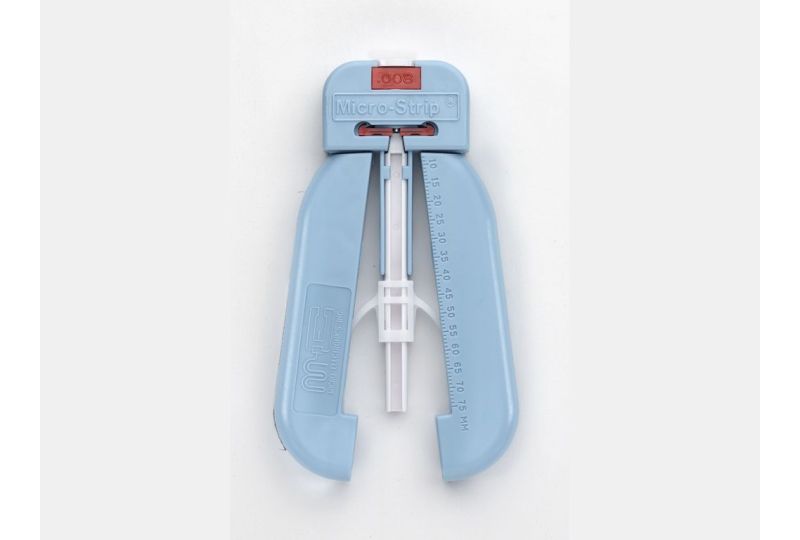

The Micro Electronics MS1-10S-21-FS Micro-Strip® Mechanical Fiber Optic Stripper is designed to precisely remove fiber coating or buffer diameters in the 457-533 µm range, exposing 180-230 µm fiber cladding. Ideal for high-precision fiber optic cable preparation and termination, it delivers consistent, repeatable results with minimal risk of fiber damage.

This fiber stripper is individually fitted for this specific fiber size, with a precision-matched fiber guide that centers and supports the fiber during stripping. The design ensures even blade engagement while reducing the risk of nicks or glass damage.

Features for Fiber Optic Stripper:

• Mechanical fiber stripping design (no heat required)
• Interchangeable modular components using standard Micro-Strip® handles
• Blade set, fiber guide, and guide lock matched to a specific fiber size
• Longitudinal stripping force minimizes blade drag and fiber damage
• Integrated fiber support channel keeps fiber straight during stripping
• Self-aligning opposing blades for concentric, nick-free scoring
• Calibrated strip length guide marked in 1 mm increments
• Spring-loaded handles automatically reopen for repetitive use

Specifications for MS1-10S-21-FS:

• Handle Assembly: MS-1-FS
• Stripper Type: Mechanical
• Fiber Coating / Buffer Diameter: 457-533 µm
• Fiber Cladding Diameter Exposed: 180-230 µm (0.0070-0.0090 in)
• Proper Blade Diameter: 0.010 in
• Replacement Fiber Guide: MS1-RT-21
• Replacement Cutter Blade: MS1-RB-10S
• Blade Color Code: Light Blue
