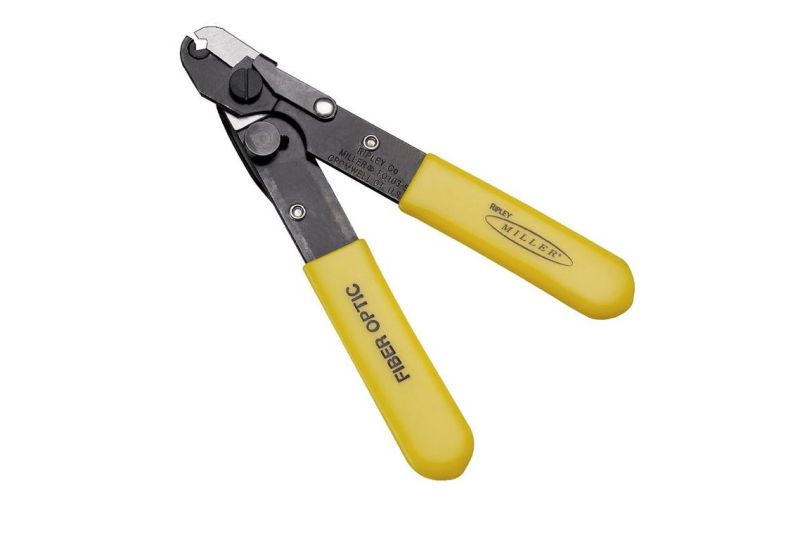

Miller Buffer Coating Strip Tool (1140um)

The Ripley® Miller FO 103-S-1140 is a custom, single-hole fiber optic stripper designed to accurately strip fiber down to 1140 µm (0.0450″) outer diameter. It is commonly used with non-standard or large-diameter fibers that require precise dimensional control. The stripping hole and V-opening are manufactured using a wire EDM (Electrical Discharge Machining) process, producing an exact and repeatable blade geometry that closely follows the fiber profile. This precision helps prevent scratching, nicking, or damage to the bare fiber during stripping.

The tool is factory-set and requires no adjustment. To operate, insert the buffer-coated fiber into the stripping hole, close the tool evenly, and pull along the fiber using light, steady pressure. Its compact design and calibrated hole support consistent, clean fiber stripping in lab, production, or field environments.

Features for Fiber Optic Stripper:

• Custom FO 103-S tool for exposing fiber to 1140 µm OD
• Single-hole design for controlled, accurate coating removal
• Wire EDM–machined stripping hole and V-opening for superior consistency
• Factory-set tool requires no adjustment
• Prevents scratching or nicking of the bare optical fiber
• REACH, Prop 65, and RoHS compliant

Specifications for FO 103-S-1140:

• Miller Part#: 80355-18
• Nominal Tool Hole Diameter: 1140 micron (0.0450″)
• Stripping Holes: 1
• Length: 5.375ʺ (137 mm)
• Weight: 2.5 oz (71 g)
• Made in USA
