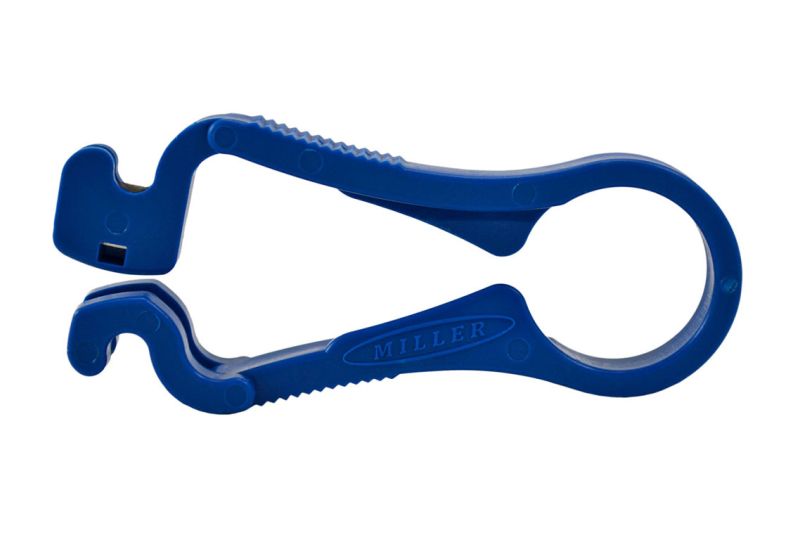

Ripley® Miller FTS Blue Buffer Tube Scorer (1.6mm-6.0mm)

The Ripley^® Miller FTS-035 Fiber Buffer Tube Scorer is a simple, easy-to-use tool designed to access fibers inside loose buffer tubes ranging from 1.6 mm to 6.0 mm (0.062″–0.236″). To operate, slide the tool over the fiber optic buffer tube and rotate it 2–4 times to create a light score mark. Scoring the tube allows for quick, damage-free access to the fibers inside.

Features:

• One-step precision scoring tool for fiber optic buffer tubes
• Factory-set hardened carbon steel blade requires no adjustments
• Durable acetal polymer body ensures long-lasting performance
• Blue color for easy field identification

Compatible with the following Outside Plant (OSP) Fiber Cables:

• Loose Tube, Single or Multi-Jacket All Dielectric (ADSS)
• Loose Tube, Single or Multi-Jacket Armored
• Single Loose Center Tube Armored
• Air-Blown Micro Fiber
• FTTH Flat Drop (Fiber-to-the-Home)
• FTTH Flat Drop with Messenger

Specifications:

• Miller Part #: 80985
• Buffer Tube Diameter: 1.6–6.0 mm (0.062″–0.236″)
• Tube Wall Thickness: 1.0-1.3 mm (0.039″ - 0.051″ )
• Fiber Optic Buffer Access: Score
• Color: Blue
• Grip Type: ‎Ergonomic
• Material: Impact-Resistant Polymer, Carbon Steel
• Dimensions: 3.75″ × 0.625″ (95.3 × 15.9 mm)
• Weight: 1 oz (28 g)
