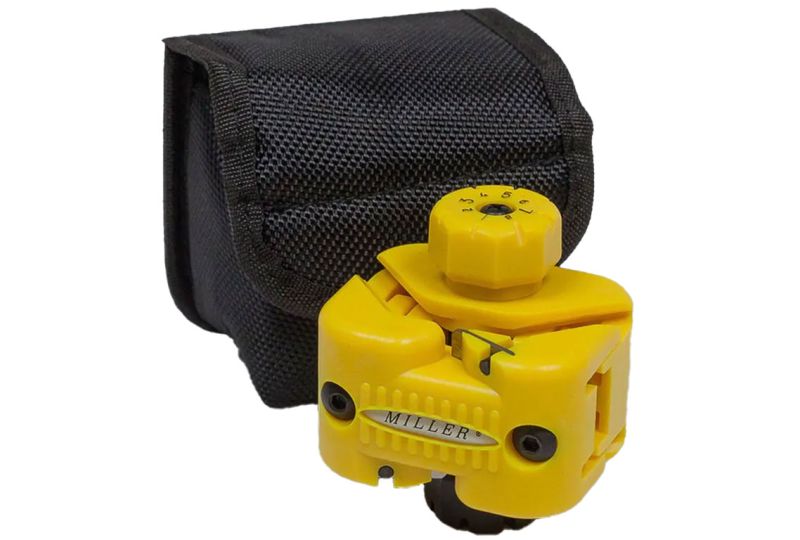

Ripley® Miller MSAT® 16-Channel Mid-Span Fiber Buffer Tube Slitter (1.0mm-3.0mm)

The Ripley^® Miller MSAT^® 16-Channel Mid-Span Fiber Access Tool is designed to quickly and safely access fibers in loose tube cables ranging from 1.0 mm to 3.0 mm (0.039″–0.118″) in diameter for mid-span applications. Sixteen precision diameter settings accommodate a wide range of loose tube sizes for accurate, damage-free fiber access. During use, the knob can be turned clockwise or counterclockwise.

Features:

• Compact, ergonomic design allows easy one-hand operation without risk of injury
• Built-in sizing channels for quick selection of proper tube setting
• Patent-pending, self-aligning channel guides and supports tubes for precision shaving
• Lightweight, durable polymer construction withstands heavy field use
• Spring-loaded design eliminates the need for locking or clamping during operation
• Fixed stainless-steel blades require no adjustments and are easily replaceable

Fiber Cable Compatibility:

• Buffer Tube Diameter: 1.0–3.0 mm (0.039″–0.118″)
• Branded compatible cables:
  • OFS EZ-Bend^® 3.0 mm cable
  • Corning ALTOS^® outdoor loose tube
  • Microduct MiniXtend^® HD and MiniXtend^® with binderless FastAccess^® Technology
  • Indoor/outdoor FREEDM^® and LSZH^® loose tube cables
  • PPC Semiflex 3 mm cable, and other similar cable styles
• Compatible with the following Outside Plant (OSP) Fiber Cables:
  • Loose Tube, Single or Multi-Jacket All Dielectric (ADSS)
  • Loose Tube, Single or Multi-Jacket Armored
  • Single Loose Center Tube Armored
  • Air-Blown Micro Fiber

Specifications:

• Miller Part #: MB01-7000
• Material: Impact-Resistant Polymer
• Patent Number(s): U.S. Patent No. 10,459,185
• Dimensions: 1.875″ x 2.75″ x 2.25″ (47.6 x 69.9 x 57.2 mm)
• Weight: 3.2 oz (90.7 g)
• Replacement Blade Part #: MB01-7500
