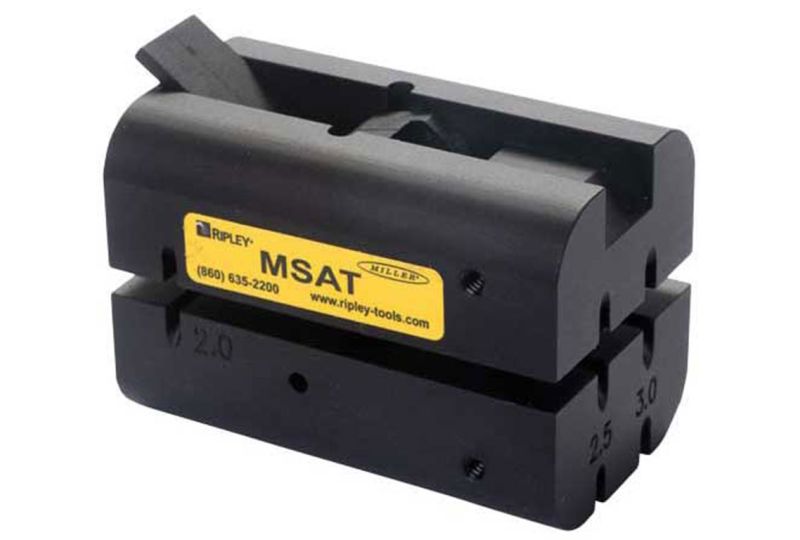

Ripley® Miller MSAT® 3-Channel Mid-Span Fiber Buffer Tube Slitter (2.0mm-3.0mm)

The Ripley^® Miller Fiber Optic Mid-Span Access Tool (MSAT) quickly and easily opens 2 mm, 2.5 mm, and 3 mm buffer tubes at mid-span locations without damaging the fibers. The tool body features built-in buffer tube size gauges for fast selection of the correct slitting channel.

Buffer Tube Slot Diameters:

• 2.0 mm Slot: 1.8–2.2 mm (0.071"–0.086") Tube O.D.
• 2.5 mm Slot: 2.3–2.8 mm (0.090"–0.110") Tube O.D.
• 3.0 mm Slot: 2.8–3.2 mm (0.110"–0.126") Tube O.D.

Features:

• Three convenient slitting channels for 2, 2.5, and 3 mm buffer tubes
• Sizing channels on the tool body determines the proper diameter channel
• Spring-loaded lever opens the tool body and stays flush when closed
• Factory-set blades require no adjustments

Specifications:

• Miller Part #: 80785
• Length: 2.5″ (63.5 mm)
• Weight: 8 oz (226.7 g)
• Replacement Blade Part #: 80794
