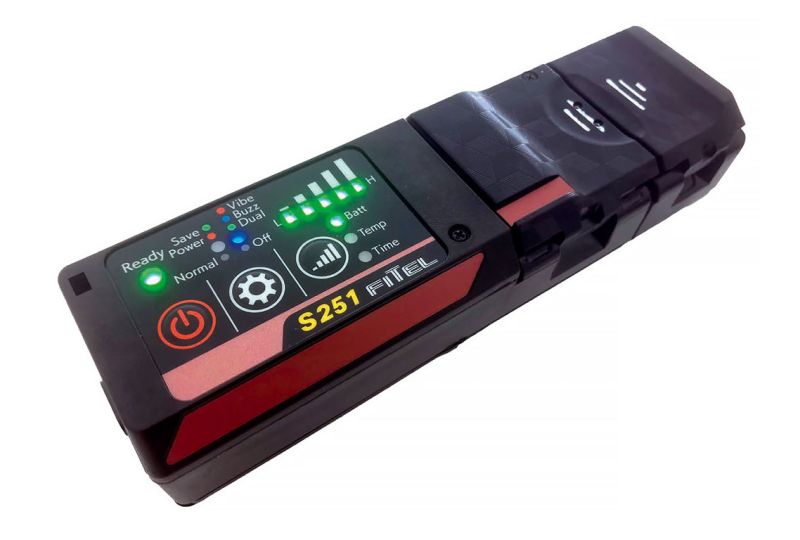

OFS FITEL S251A Optical Fiber Stripper

The OFS FITEL S251A Fiber Optic Stripper is designed for efficient stripping of both single fibers and fiber ribbons. Thanks to its built-in battery, it operates wirelessly, offering great portability and convenience, perfect for fieldwork and production environments.

Features:

• Compatible with 200–400 μm single fibers and fiber ribbons
• Fast, consistent stripping, ready to strip in just 5 seconds
• Lower pulling force reduces fiber damage, improving yield
• Easy cleaning thanks to a flat heater design
• Adjustable heat and timing settings tailored for each fiber type and work environment
• USB-C charging port for convenient power from portable batteries
• Ideal for outdoor use with bright LED indicators, sound & vibration alerts, and a water-resistant body

Specifications:

• Applicable fibers: Optical glass fibers
• Cladding diameter: 125 μm
• Fiber count: 1 to 12 fibers; up to 16 fibers (for 0.20 mm coating only)
• Coating diameter: 0.20 to 0.40 mm
• Fiber ribbon thickness: 0.20 to 0.40 mm
• Heating temperature settings: 80, 100, 120, 140, 160 °C (176, 212, 248, 284, 320 °F)
• Battery life: Approx. 10 hours in normal mode (~600 stripping cycles)
• Charging time: Approx. 3 hours (powered off)
• Power supply:
  • DC: 5 V, 9 V 2 A, 9 V 3 A
  • AC: 100–240 V (using S983A AC adapter)
• Dimensions: 147 mm (W) × 46 mm (D) × 35 mm (H) / 5.79 × 1.81 × 1.38 in
• Weight: Approx. 240 g (0.53 lbs, including battery)
• Operating conditions:
  • Temperature: –10 to 50 °C (14 to 122 °F)
  • Humidity: Max 95% RH (non-condensing)
• Storage conditions:
  • Temperature: –40 to 60 °C (–40 to 140 °F)
  • Humidity: Max 95% RH (non-condensing)
