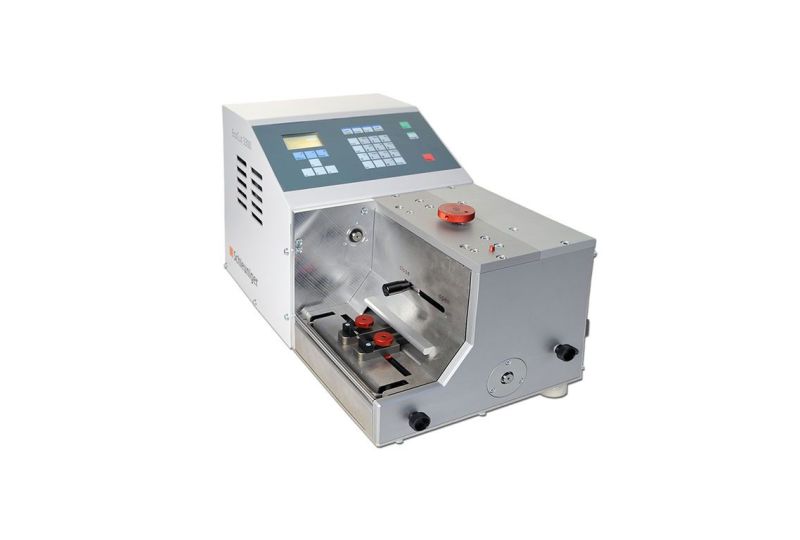

Schleuniger EcoCut 3300 Cable Cutting Machine.
EC3300
Schleuniger EcoCut 3300 Cable Cutting Machine with Steel Blade/Anvil Set. Power Supply Plug Type to be Specified
**Optional Carbide Blade/Anvil Set (OCP-902) Recommended for Fiber Applications and Must Be Purchased Separately**
**Optional Carbide Blade/Anvil Set (OCP-902) Recommended for Fiber Applications and Must Be Purchased Separately**
The EcoCut 3300 is designed to automatically cut all kinds of material including wire, cable, round material such as tubing, flat ribbon and Glass Fiber Optic (GOF) cable. This flexible machine processes wire up to 16 mm² (6 AWG), cuts round material up to 12 mm (0.47'') O.D. and cuts flat material up to 100 mm (3.94'') wide.
Features:
- Versatile machine can be used to process a wide range of materials
- Easy, menu-guided operation and programming requires minimal training
- Due to the heavy duty, precision cutting unit, even very thin materials (Kevlar strands, foil,etc) can be cut clean and square
- Excellent price-to-performance ratio
Technical specifications:
- Raw Material Diameter: 12 mm (0.47“)
- Conductor Cross-Section
- Stranded Wire: Max. 16 mm2 (6 AWG)
- Solid Wire: Max. 6 mm2 (10 AWG)
- Raw Material Width: Max. 100 mm (3.94”)
- Feed Rate Max.: 1.60 m/s (5.25 ft/s)
- Pulling Force: 100 N (22 lbf)
- Length Increment: 0.1 mm (0.004”)
- Power Supply Plug Type to be Specified
