Schleuniger Pre-Feeder 2200 for Reels Up to 154 Lbs
PF2200

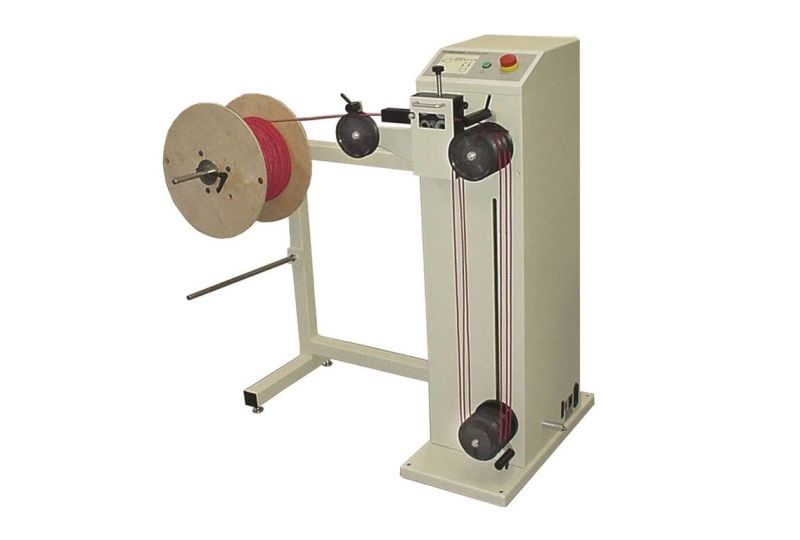

Schleuniger Pre-Feeder 2200 for Reels Up to 154 Lbs. Power Supply Plug Type to be Specified
The PreFeeder 2200 is a free-standing, electric-demand prefeeding machine designed to pull wire and cable from reels weighing up to 68 kg (150 lbs.) and provide a constant tension to downstream wire processing machines. A movable dancer pulley allows the PreFeeder 2200 to easily respond to the typical intermittent starting and stopping actions associated with automatic wire processing machines.
Features:
- Front-loading operating head for quick, tool-less cable changeovers
- Wide belts can pull cables up to 15 mm (0.60”) in diameter
- Universally adjustable cable guide eliminates individual guides that can be misplaced
- Powerful drive motor for turning heavy reels
- High maximum speed of. 2.5 m/s (8.2 ft/s) keeps up with most cut, strip and terminate applications
- Large accumulation capacity 3.8 m (12.5 ft) easily handles high speed/high acceleration applications
- Simple controls and ergonomic panel height for easy operation
Technical specifications:
- Raw Material Diameter: 15 mm (0.60”)
- Reel Diameter: Max. 762 mm (30”)
- Reel Width: Max. 457 mm (18”)
- Reel Weight: Max. 70 kg (154 Ibs.)
- Pulling Force: Max. 150 N from cable rack
- Reel Arbor Diameter: 19 - 65 mm (0.75 – 2.3”)
- Feed Rate: 2.5 m/s (0 – 8.2 ft./s)
- Power Supply Plug Type to be Specified
