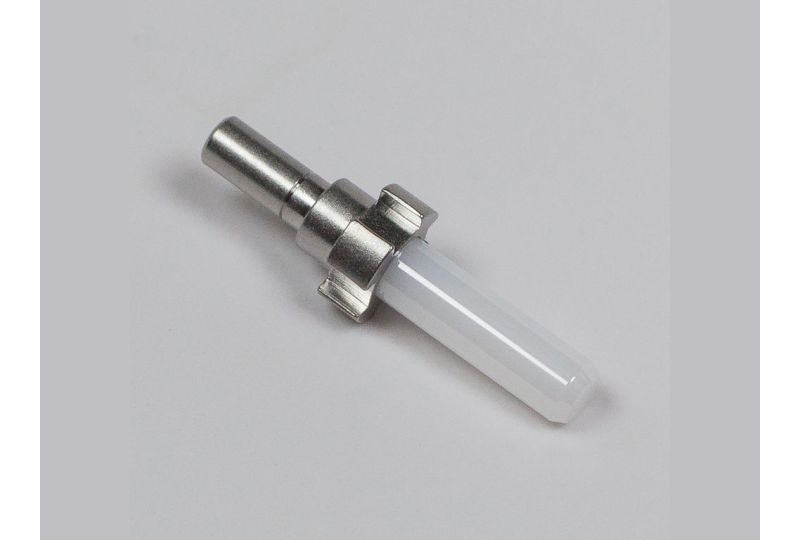

Seikoh Giken Pre-Radius 4 Slot Zirconia 2.5mm Ferrule 125um -360
SZ-3A1512580G
Seikoh Giken Pre-Radius SM 4 Slot Zirconia 2.5mm Ferrule with a 125um Inner Diameter and a 1.0um Concentricity Tolerance Compatible with SGP Series 360 Tunable Housings.
Seikoh Giken’s 2.5mm zirconia ferrules are designed for singlemode applications using SC and FC PC connectors. Each ferrule features a pre-dome, funnel shape that simplifies alignment and improves polish consistency.
These ferrules are manufactured through a precision injection molding process that results in a dense, uniform ceramic structure and a smooth surface finish—key for maintaining low insertion loss. The tapered tail design helps guide the fiber into place without scratching, making handling and assembly easier.
Features & Benefits:
These ferrules are manufactured through a precision injection molding process that results in a dense, uniform ceramic structure and a smooth surface finish—key for maintaining low insertion loss. The tapered tail design helps guide the fiber into place without scratching, making handling and assembly easier.
Features & Benefits:
- Precision injection-molded for high-density zirconia and superior surface quality
- Pre-angled, conical design tailored for APC applications
- Smooth taper tail for easy fiber insertion without scratches
- End-to-end process control ensures reliable performance
- Ideal for SC/FC PC connector types
- Ferrule Hole Diameter: 125µm (micron)
- Ferrule Type: Ceramic (Zirconia)
- Polish Type: Physical Contact (PC)
- Hole Eccentricity: ≤ 0.5μm
- Hole Diameter Tolerance: + 1.0/-0
- Flange Shape: O.D. ø 4.7 mm for SGP series FC housing
- Flange Type: Stainless Steel
Datasheet
