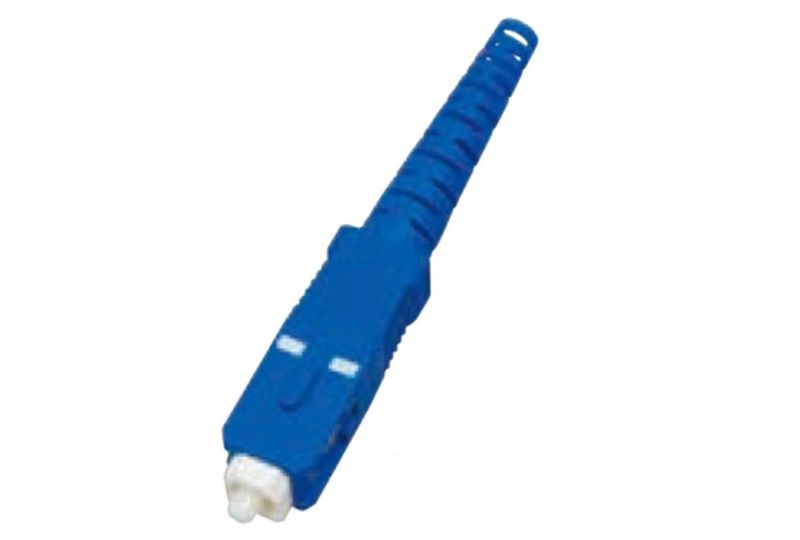

Seikoh Giken SSC-PE SC Connector, Singlemode, 126µm (micron) Ceramic Ferrule, 2mm Blue Boot

Seikoh Giken SC Connectors offer a cost-effective, reliable solution for telecom and Passive Optical Network (PON) applications. These standard square SC connectors feature a robust push-pull mechanism that ensures low insertion loss (<0.5 dB) and durable performance. Available in both PC and APC versions, they use a 2.5mm ferrule and are engineered for quick, secure connections—even in high-density environments.

Features:

• Comply with IEC 61754-4 and JIS C 5973 standards
• Meet Telcordia GR-326-CORE test specifications (with slotted boot)
• Non-Flammability complied UL94 V-0 use
• One-piece plug with Pre-radius Zirconia ferrule already installed for quick assembly

Specifications:

• Model Number: SSC-PE
• Singlemode Fiber Optic Connector
• Ferrule ID Size: 126µm (micron)
• Ceramic (Zirconia) Ferrule
• Boot Color: Blue
• Boot I.D.: For 2mm cord
• Black Ferrule Cap
• Bulk package
• Marking of Grip: SG/SSC-P
