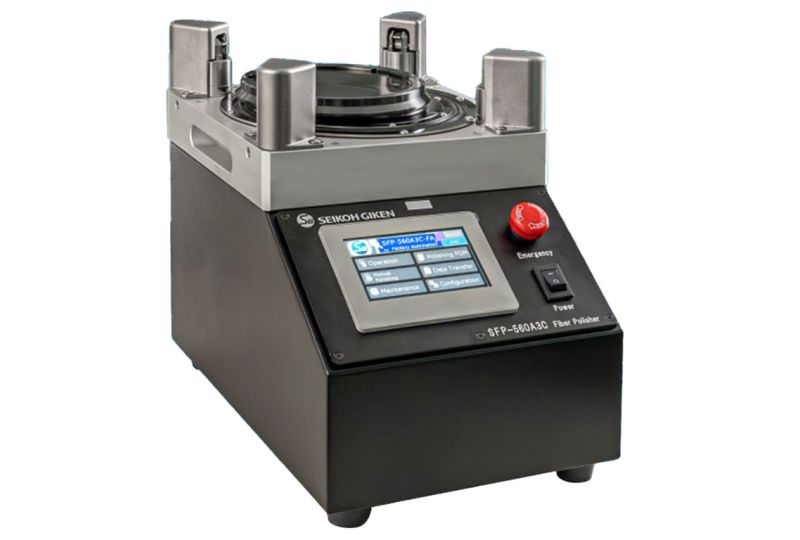

Seikoh Giken SFP-560A3C-FA Fiber Optic Polishing Machine for Factory Automation

The Seikoh Giken SFP-560A3C-FA fiber optic polishing machine is built for factory automation and features Seikoh Giken’s patent-pending Dynamic Pressure Control (DPC) system. Mounted within the SFPS-V1 Automated Fiber Polishing System, it delivers high-precision fiber optic polishing production with advanced automation capabilities.

This machine includes three key automation functions. It supports network communication for seamless system integration. The auto clamping mechanism locks and unlocks the polishing holder without operator input. The turntable origin return resets the turntable position after polishing.

Features:

• A barcode scanner and touch panel allow easy input of lapping film, pad, and liquid data, optimizing service life.
• The "Add Time" function adjusts polishing duration based on usage, ensuring consistent fiber geometry and extended film lifespan.
• Pressure ramp-up and Fixed Height Mode enhance process precision.
• Motor speed is adjustable from 10 to 200 RPM for greater control.
• Compatible with Modbus TCP/IP for streamlined communication.

Specifications:

• Weight: 22kg (48.5lb)
• Dimensions: 240W x 370D x 305H (mm)
• Polishing Method: Rotation & Revolution
• Pressure Control: 2N to 200N in DPC mode
• Power: 100–240 VAC, 50/60Hz
• Required Air: 0.6MPa to 0.8MPa
• Motor Speed: Revolution: 10–200rpm; Rotation: 1/100 of revolution speed
• Process Storage: Up to 48 processes
• Lapping Film & Polishing Pad Size: 5” (127mm)
