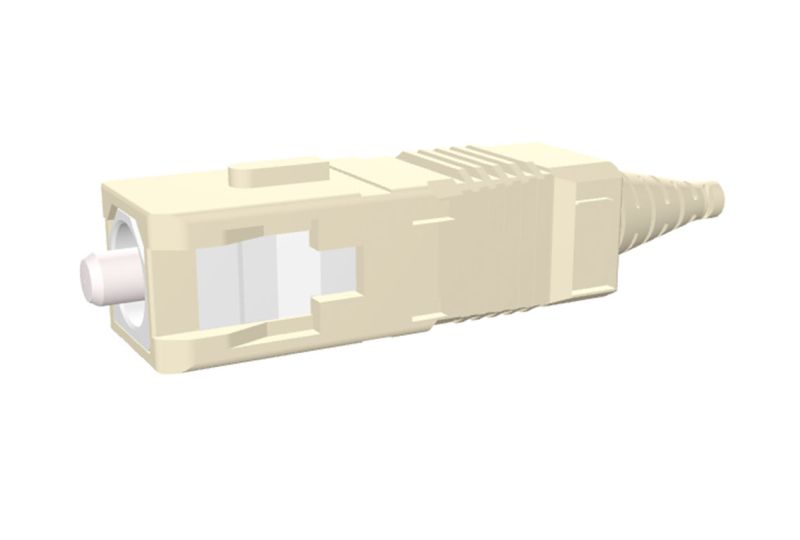

SENKO SC Connector, Multimode, 127µm (micron) Ceramic Ferrule, 900µm Beige Boot

SENKO’s SC Premium connector is the flagship model in the SENKO fiber optic SC Connector lineup, offering industry-leading low insertion loss and repeatable optical performance. Designed for the most demanding applications, it delivers class-leading precision and quality.

The SC fiber connector uses high-quality materials and precision keying features to achieve superior core-to-core fiber alignment. This minimizes apex offset and ensures exceptional insertion loss and return loss performance

Features:

• Compliant with IEC 61754-4
• Push-pull mechanism for easy, repeatable connections
• Meets and exceeds Verizon FOC TPR9409
• GR-326 qualified

Applications:

• Data center fiber optic networks
• Telecommunications infrastructure
• FTTx (Fiber-to-the-x) deployments
• Premise wiring and distribution systems
• Industrial and military/defense communications

Specifications:

• Durability: 500 matings (TIA-568.3)
• Cable Suitablity: 900µm
• Boot Size: 900µm
• Boot Color: Beige
• Boot Type: MINI
• Housing Color: Beige
• Ferrule ID: 127μm (micron)
• Ferrule Material: Ceramic (Zirconia)
• Typical Insertion Loss: 0.10 dB
• Max Insertion Loss: 0.20 dB
• Typical Return Loss: ≥ 25 dB
