Soft-Strip Stripper, .0055 (140um) Blade, .0100 (254um) Guide

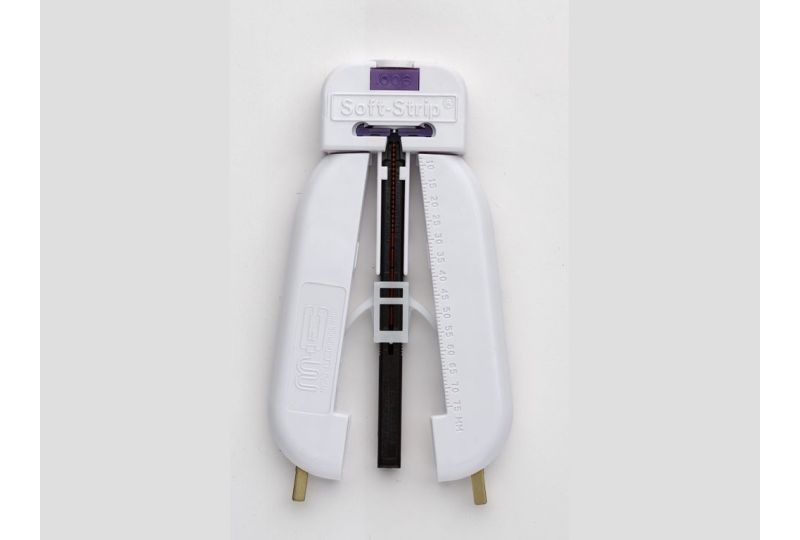

The Micro Electronics MS-4T-05S-10 Soft-Strip^® Thermal Fiber Optic Stripper removes fiber coatings in the 180-250 µm range to expose 85-120 µm cladding. Equipped with a heater oven, its integral heating elements soften coatings and insulations such as Mylar, Kapton, Teflon, PVC, and Hytrel, allowing single-fiber stripping with less than 1 lb of pulling force. This helps prevent fiber damage and supports more consistent splices and connections.

The included fiber guide centers and supports the fiber during stripping, ensuring consistent blade engagement and reducing the risk of nicking the glass. Both the heater oven and blades are replaceable, making the system versatile and cost-effective.

Features for Thermal Stripper:

• Strips single fiber with low pulling force ( < 1lb)
• Removes 180-250 µm coating to expose 85-120 µm fiber cladding
• Patented non-nicking Soft-Strip® design for precision coating stripping
• Mini heater oven softens coatings for fast, clean removal
• Interchangeable, replaceable cutter blades and fiber guides

Specifications for MS-4T-05S-10:

• Model: MS-4T-E (AC adapter powered)
• Fiber Cladding Diameter to Expose: 85-120 µm (0.0033-0.0047 in)
• Fiber Coating or Buffer Diameter: 180-250 µm (micron)
• Proper Blade Diameter: 0.0055 in
• Max Strip Length: 2-3 in
• Replacement Heater Cartridge: MS-RHM-2
• Power Supply (Sold Separately): MS-T3
• Replacement Fiber Guide: MS1-RT-10
• Replacement Cutter Blade: MS1-RB-05S
• Blade Color Code: Lavender
