Soft-Strip Stripper, .0063 (160um) Blade, .0070 (180um) Guide

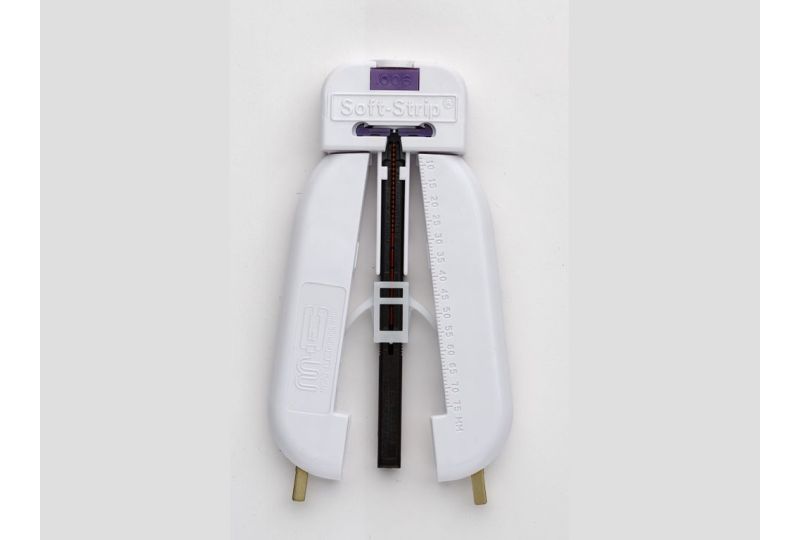

The Micro Electronics MS-4T-06S-07 Soft-Strip^® Thermal Fiber Optic Stripper removes fiber coatings up to 180 µm to expose 125-135 µm cladding. Equipped with a heater oven, its integral heating elements soften coatings and insulations such as Mylar, Kapton, Teflon, PVC, and Hytrel, allowing single-fiber stripping with less than 1 lb of pulling force. This helps prevent fiber damage and supports more consistent splices and connections.

The included fiber guide centers and supports the fiber during stripping, while the fiber guide lock holds the fiber securely in position, ensuring consistent blade engagement and reducing the risk of nicking the glass. Each tool uses the same interchangeable blade design as Micro Electronics’ non-thermal models. Both the guide and blades are replaceable, making the system versatile and cost-effective.

Features for Thermal Stripper:

• Strips single fiber with a pulling force of less than 1 lb
• Remove up to 180 µm coatings to expose 125-135 µm fiber cladding
• Patented non-nicking Soft-Strip® design for precision coating stripping
• Mini heater oven softens coatings for fast, clean removal
• Interchangeable, replaceable cutter blades and fiber guides

Specifications for MS-4T-06S-07:

• Model: MS-4T-E (AC adapter powered)
• Fiber Cladding Diameter to Expose: 125-135 µm (0.0049-0.0053 in)
• Fiber Coating or Buffer Diameter: up to 180 µm (micron)
• Proper Blade Diameter: 0.0063 in
• Max Strip Length: 2-3 in
• Replacement Heater Cartridge: MS-RHM-2
• Power Supply (Sold Separately): MS-T3
• Replacement Fiber Guide: MS1-RT-07
• Replacement Cutter Blade: MS1-RB-06S
• Blade Color Code: Purple
