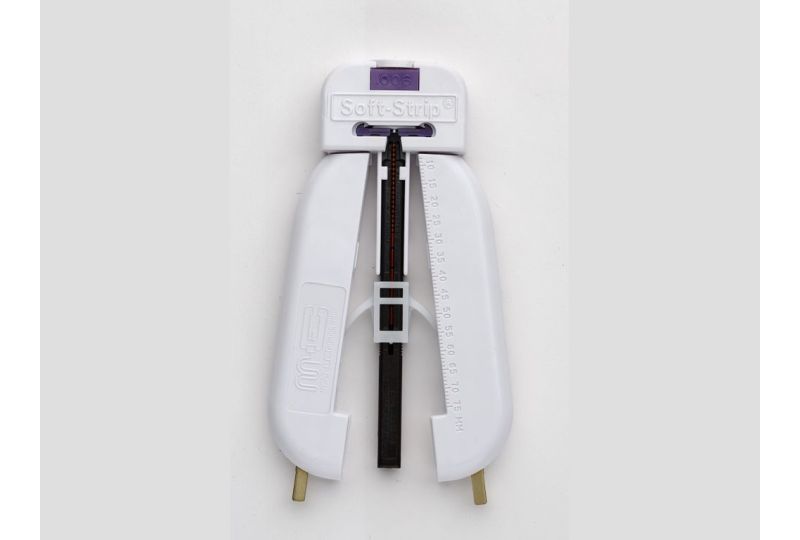

Soft-Strip Stripper, .0080 (203um) Blade, .0210 (533um) Guide

The Micro Electronics MS-4T-08S-21 Soft-Strip® Thermal Fiber Optic Stripper removes fiber coating and buffer in a range of 457-533 µm to expose 125-175 µm cladding. Equipped with a heater oven, its integral heating elements soften coatings and insulations such as Mylar, Kapton, Teflon, PVC, and Hytrel, allowing single-fiber stripping with less than 1 lb of pulling force. This precision helps properly prepare the fiber for additional fiber preparation steps.

The included fiber guide centers and supports the fiber during stripping, while the fiber guide lock holds the fiber securely in position, ensuring consistent blade engagement and reducing the risk of nicking the glass. Each tool uses the same interchangeable blade design as Micro Electronics’ non-thermal models. Both the guide and blades are replaceable, making the system versatile and cost-effective.

Features for Thermal Stripper:

• Strips single fiber with a pulling force of less than 1 lb
• Removes 457-533µm buffer to expose 125-175 µm fiber cladding
• Patented non-nicking Soft-Strip design for precision coating stripping
• Mini heater oven softens coatings for fast, clean removal
• Interchangeable, replaceable cutter blades and fiber guides
• Strip length guide calibrated in 1 mm increments for repeatable strip lengths

Specifications for MS-4T-08S-21:

• Model: MS-4T-E (AC adapter powered)
• Fiber Cladding Diameter to Expose: 125-175 µm (0.0049-0.0068 in)
• Fiber Coating or Buffer Diameter: 457-533 µm (micron)
• Proper Blade Diameter: 0.008 in
• Max Strip Length: 2-3 in
• Replacement Heater Cartridge: MS-RHM-2
• Power Supply (Sold Separately): MS-T3
• Replacement Fiber Guide: MS1-RT-21
• Replacement Cutter Blade: MS1-RB-08S
• Blade Color Code: Red
