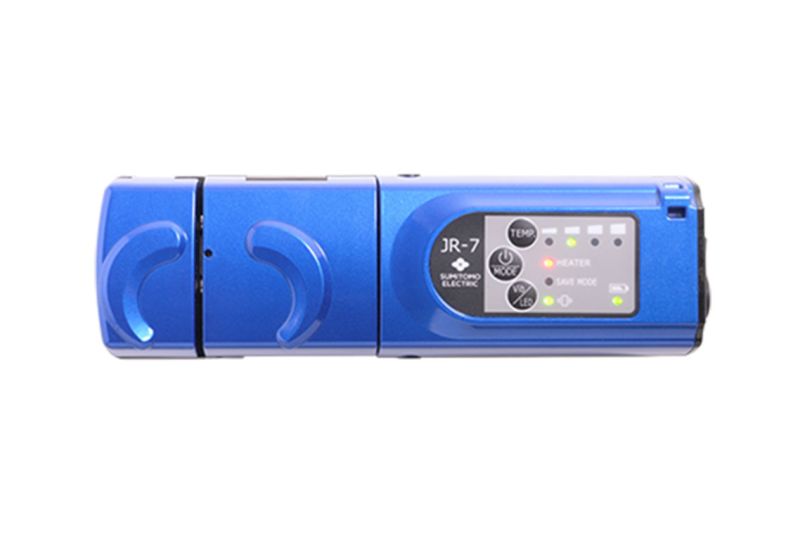

Sumitomo Electric Lightwave JR-7 Thermal Fiber Stripper for up to 12-Fiber Ribbon

The Sumitomo Electric Lightwave JR-7 Fiber Optic Thermal Stripper is designed for fast, precise thermal stripping of 200–250 μm fiber ribbons, including single fibers with 125 μm cladding. Its advanced heater and blade system ensures consistent removal of UV-cured resin coatings while reducing operator effort.

The JR-7 features a new ergonomic design with a tough metal lid for durability, vibration-ready notifications, an LED light for dark environments, a wide and flat stage for easy setting and cleaning, and an improved blade that reduces operation force. It also includes power-saving and auto power-off functions.

Features:

• Compatible with 200 & 250 μm fiber ribbons
• LED lighting illuminates the heater area for dark environments
• Vibration-ready notification signals when to remove the coating
• IPx2 water protection and shock-resistant design
• Field-replaceable blade and battery for easy maintenance
• Wide, flat stage for easy setting and cleaning

Applicable Fibers:

• Coating Material: UV-cured resin
• Coating Thickness: Single fiber 200–400 μm, Ribbon fiber (2–12 fibers) 200–400 μm
• Cladding Diameter: 125 μm
• Max Removal Length: 1.38 in (35 mm)

Specifications:

• Temperature Settings: 4 Levels (176–284˚F / 80–140˚C)
• Power Saving Function: Normal / Power Saving Mode
• LED Indicators: Battery level & temperature
• Vibration Function: Alerts when to remove coating (ON/OFF)
• LED Lighting: Illuminates heater section (ON/OFF)
• Fiber Holders: FH Series
• Removal Cycles per Battery: Approx. 600 (12-fiber ribbon, 212°F (100˚C), one ribbon per minute, SAVE mode)
• Dimensions: 1.81(W) x 4.57(D) x 1.48(H) in (46 x 116 x 37.5 mm)
• Weight: 253 g (including battery)
• Replacement Blade: JR7-BL
• Replacement Battery: BU-JR
