ÅngströmLap® Ultimas™-U Final Polish Lapping Film Disc - 110mm
ULT026051103N100
AngstromLap Ultimas-U New Final Polish Lapping Film 110mm, (package of 100 discs)
The ÅngströmLap® Ultimas™-U New Final Polish Lapping Film is designed to maintain ferrule geometry while enhancing return loss and surface quality. Utilizing silicon dioxide material, these films polish ceramic ferrules and glass fibers at a similar rate, resulting in a negative fiber height. Additionally, they offer precise control over fiber height generation, allowing customization of pressure, speed, and pad durometer to suit your facility's production environment.
Lapping Film Features:
Lapping Film Features:
- FO Type Name: 026Ultimas-NEC3
- Film Color: Natural (white)

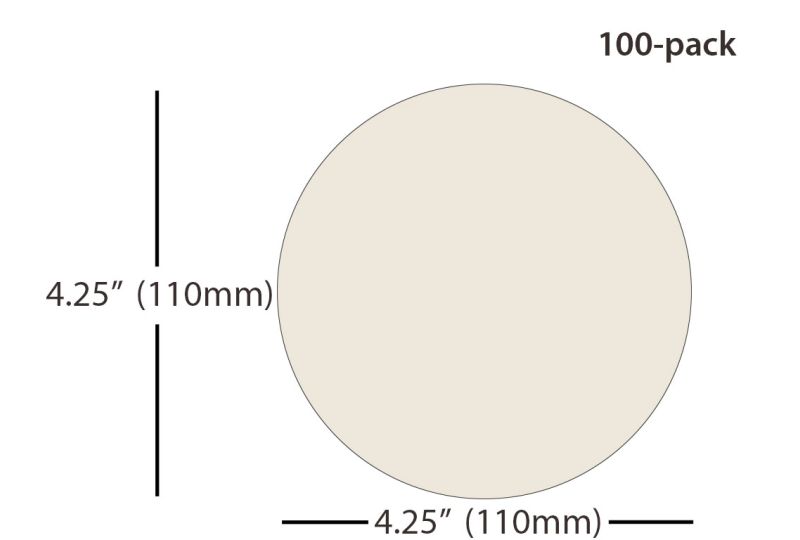

- Disc Size: 110mm
- Tape Total Thickness: 78.5 ± 2.0 μm
- Surface Roughness: 0.09 ± 0.05 μm
- Particle Type: Silicon dioxide film
- Base Film Material: Polyethylene terephthalate
- Base Film Thickness: 3 mil (75 μm)
- Process Parameters Type: NEC3
- Quantity: 100 discs
- Non-PSA Backed Film
- Product Life: Guaranteed up to 5 years from the manufactured date
