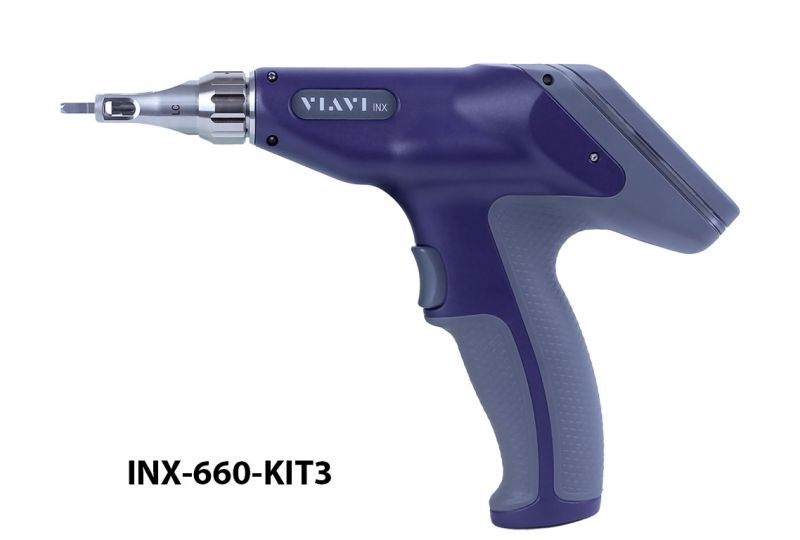

VIAVI INX™ 660 Fiber Optic Inspection Probe Microscope Kit with MPO/APC, LC/PC & SC/PC Bulkhead Tips

The VIAVI INX™ 660 Inspection Probe Microscope (INX 660) delivers fully automated fiber optic inspection and analysis of single fiber connectors, ensuring pristine connections every time. Designed for field use and VIAVI TPA™ (Test Process Automation) enabled, the INX 660 automates every step of the fiber inspection workflow, from test setup and tip configuration to ferrule end-face image capture, analysis, and result storage, maximizing efficiency and accuracy.

With complete cycle times under 5 seconds for single fiber connectors and a rapid tip-changing process, the INX 660 provides technicians with the fastest workflow in fiber optic connector inspection.

Kit Includes:

• INX 660 Microscope: Automated simplex inspection with BT WiFi connectivity
• Bulkhead Tips: MPO/APC, LC/PC, SC/PC
• Mating Adapters: MPO, LC duplex, SC duplex
• Accessories: Tip cover, tip storage case, USB charging adapter and cable, carrying case

Features:

• True Automated Inspection: Automates every step of the process for the fastest end-to-end workflow in the industry
• AutoID Inspection Tips: Reduce setup errors when changing tips
• VIAVI Test Process Automation (TPA™): Ensures alignment, efficiency, and accuracy throughout every stage

Applications:

• Service providers
• MSOs (Multiple System Operators)
• FTTx installers (fiber-to-the-x)

Specifications:

• Field of View:
  • Single fiber: 1000 × 1425 μm (micron)
  • Multifiber: 4750 × 1425 μm
• View Modes: Live, Inspected
• Magnification Modes: Low, High (with auto center)
• Focus: Automatic (on insert, on trigger)
• Image Analysis: Automatic (IEC 61300-3-35 edition 2 or 3, or user-defined)
• Auto Focus + Image Analysis Time: ≤ 4 s (single fiber)
• Result Saving: Manual or automatic (if pass, if fail, always) | Save time ≤ 1 s (single fiber)
• Storage Capacity:
  • ≤ 10,000 single fiber results
  • ≤ 1,500 multifiber results (or proportional distribution)
• Hard Buttons: Power, Trigger
• Display: 2.4" (320 × 240-pixel) color backlit touchscreen

See more details in the datasheet.
