ÅngströmLap® Silicon Carbide Lapping Film Disc - 4 inch 30µm (micron)
SC30F403N100

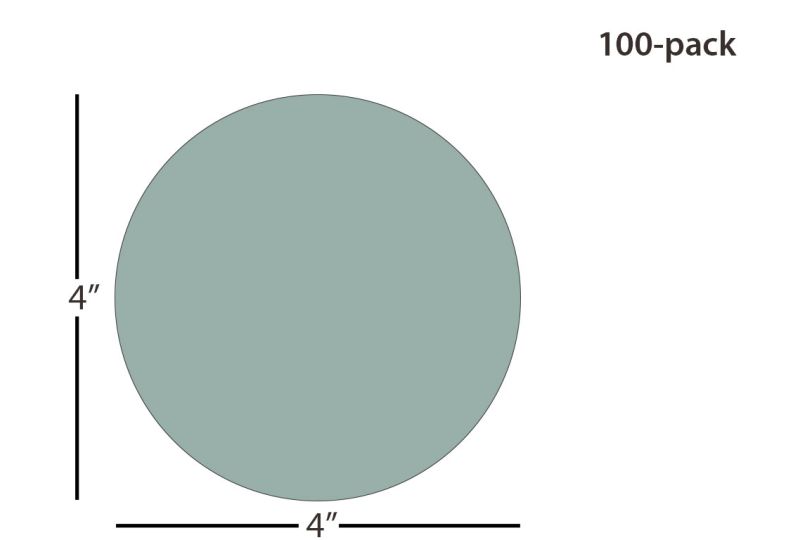

ÅngströmLap 30um Silicon Carbide Lapping Film, 4" Disc with 3mil Backing, package of 100 discs.
ÅngströmLap® Silicon Carbide Lapping Film is a more aggressive abrasive film material, often recommended over Aluminum Oxide Lapping Film for epoxy and glass removal. It is not commonly used for the later steps in the fiber optic polishing process. It produces an excellent surface finish and can help reduce overall polishing process time.
The 4" disc is the standard size for the Seikoh Giken SFP-100D, Ultra Tec UT-8808 (old), Minipol-1, Siecor SP500, Domaille FS500 and all Krell Polishing Machines.
Lapping Film Features:
The 4" disc is the standard size for the Seikoh Giken SFP-100D, Ultra Tec UT-8808 (old), Minipol-1, Siecor SP500, Domaille FS500 and all Krell Polishing Machines.
Lapping Film Features:
- FO Type Name: SC30-AF
- Film Color: Natural (green)
- Tape Total Thickness: 112.0 ± 5.0 μm
- Surface Roughness: 4.8 ± 1.5 μm
- Particle Type: Silicon Carbide film
- Grit Size: 30 micron (30μm)
- Base Film Material: Polyethylene terephthalate
- Base Film Thickness: 3 mil (75 µm)
- Quantity: 100 discs
- Non-PSA Backed Film
- Process Parameters Type: AF
- Product Life: Guaranteed up to 5 years from the manufactured date
