ÅngströmLap® Aluminum Oxide Lapping Film Disc - 5 inch 5µm (micron)
AO5T503N100

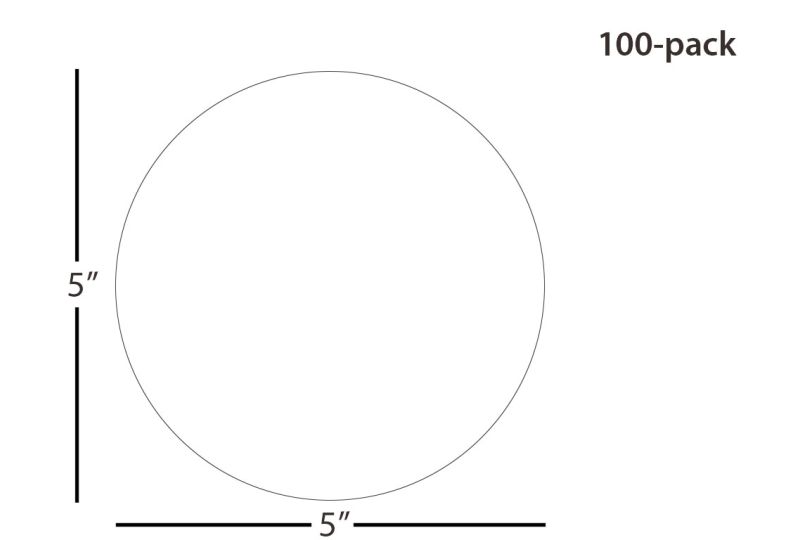

AngstromLap 5um Aluminum Oxide Lapping Film, 5" Disc with 3 mil Backing, package of 100 discs.
ÅngströmLap Aluminum Oxide Lapping Film is recommended when diamond lapping film is not needed, like in many fiber optic multimode applications. Some aluminum oxides can even be used as the final polish. The 0.5um and 0.3um will produce return losses of -50 dB or better, but because they cut the glass at a much quicker rate than the ceramic, undercut may occur. Aluminum oxide 5μm lapping film is typically used as for polishing MM connectors.
The 5" disc is the standard size for the Domaille APM-HDC-xxxx Series, Seikoh Giken SFP-5XX Series and Ultra Tec UT-8812 or UT-8808 Polishing Machines.
Lapping Film Features:
The 5" disc is the standard size for the Domaille APM-HDC-xxxx Series, Seikoh Giken SFP-5XX Series and Ultra Tec UT-8812 or UT-8808 Polishing Machines.
Lapping Film Features:
- FO Type Name: AO5-AT
- Film Color: White
- Tape Total Thickness: 91.0 ± 2.0 μm
- Surface Roughness: 2.3 ± 1.0 μm
- Particle Type: Aluminum Oxide film
- Grit Size: 5 micron (5μm)
- Base Film Material: Polyethylene terephthalate
- Base Film Thickness: 3 mil (75 µm)
- Quantity: 100 discs
- Process Parameters Type: AT
- Non-PSA Backed Film
- Product Life: Guaranteed up to 5 years from the manufactured date
