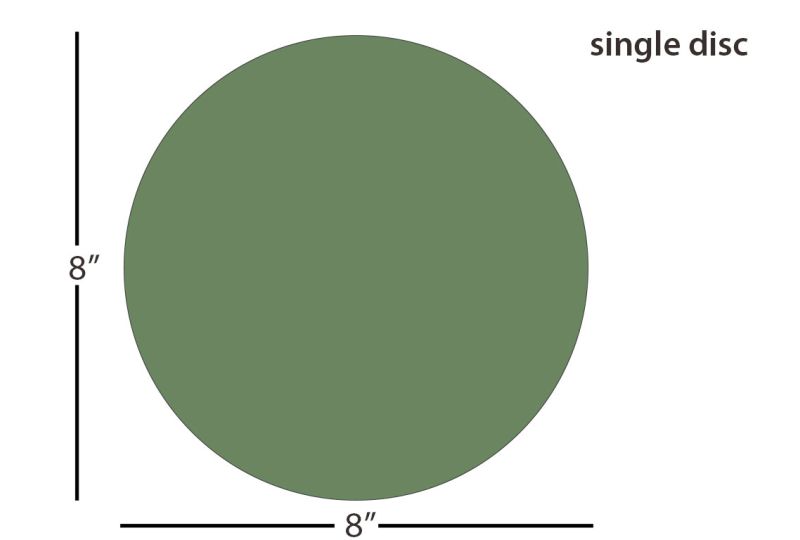

ÅngströmLap® Sequoia Diamond Lapping Film Disc - 8 inch 30µm (micron)
D30NW803N1
AngstromLap Sequoia 30um Diamond Lapping Film, 8" disc with 3mil Backing, single disc.
The ÅngströmLap Sequoia Diamond Lapping Film is an abrasive film used for polishing the end-face of fiber optic connectors. Its purpose is to shape the fiber geometries, such as restoring or forming the Radius of Curvature and Apex Offset of the ferrule. Diamond film exhibits an extended lifespan compared to conventional films, and its high-cut rate enables more efficient material removal for a faster polishing process.
The 8" film disc is the standard size for the Ultra Tec Ultrapol 1200, some Buelher polishing machine, as well as others.
Lapping Film Features:
The 8" film disc is the standard size for the Ultra Tec Ultrapol 1200, some Buelher polishing machine, as well as others.
Lapping Film Features:
- Film Color: Light Green
- Tape Total Thickness: 103.0 ± 10.0 µm
- Surface Roughness: 3.0 ± 2.0 μm
- Particle Type: Diamond film
- Grit Size: 30.0 micron (30μm)
- Base Film Material: Polyethylene terephthalate
- Base Film Thickness: 3 mil (75 µm)
- Quantity: Single disc
- Non-PSA Backed Film
- Process Parameters Type: NW
- Product Life: Guaranteed up to 5 years from the manufactured date
