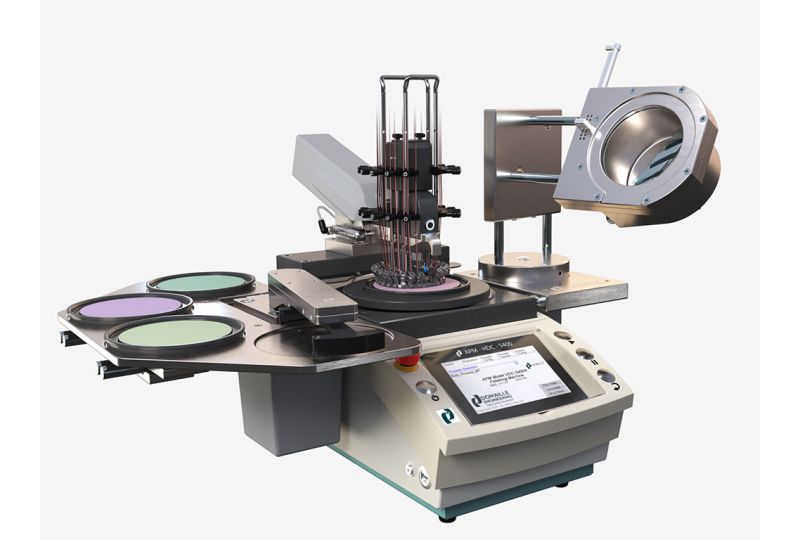

Domaille 5400 Automated Fiber Optic Polishing Machine Suite - Package

APM-HDC-5400-AS1

Domaille 5400 Automated Polisher Suite - Package
APM-HDC-5400 Polisher
Micro-G Fixture Module
EZLift Positioning Arm
AquaSpray Cleaning System
MediaExchange Unit
Basic Frame Only with Corresponding Control Kits

**OPTIONAL FIBERSTATION FRAME (P/N AS5120) & SAFETY PACKAGE (P/N AS5210) EACH SOLD SEPARATELY**
**DOMAILLE POLISHING PLATE COLLAR (P/N MG1011) ALSO REQUIRED FOR NON-CAM LOCK PLATES**

The Domaille 5400 Automated Fiber Optic Polishing Machine Suite includes all the individual components seamlessly integrated to provide an automated fiber optic polishing solution. Each component contributes an additional layer of automation to the APM-HDC-5400 Polishing Machine. The 5400 includes automated features available for individual selection, allowing for a customizable configuration.

Included in this package:

Domaille APM-HDC-5400 Polisher: A high-precision, automated polishing machine.
Micro-G Fixture Module: Delivers zero-pressure polishing for optimal results.
EZLift Positioning Arm: Automates lifting and lowering for seamless operation.
AquaSpray Cleaning System: Ensures consistent, repeatable cleaning.
MediaExchange Unit: Automates abrasive film and polishing media exchange
Basic Frame ONLY

Key Benefits:

Streamlined Workflow: Guarantees precision, consistency, and reliability.
Time-Saving Automation: Shortens the polishing process by 25%.
Efficiency Boost: Reduces manual touchpoints by 50% and labor by 75%.
Extended Unattended Operation: Allows for up to 15 minutes of hands-free polishing.

**Optional Fiberstation Frame (Part #: AS5120) and Safety Package (Part #: AS5210). Each Sold Separately.**
**Domaille Polishing Plate Collar (Part#: MG1011) also required for non-cam lock plates**

Datasheet

Domaille 5400 Automated Fiber Optic Polishing Machine Suite - Package - Datasheet

Product Video

Updates

Please note Product Change Notification:

Effective May 2025, the Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine will include the following improvements:

Increased screen size to 10.1”.
6x more powerful system (CPU).
No loading/waiting screens.
Addition of swiping.
Removed need for a Power On button; disabling the EPO achieves the same effect.
Audio now delivered through HMI speaker.
Play/Pause button to both play and pause a step.
Reset button now in software.
Platen indexing manually executed according to recipe parameters, if enabled, in production and process configuration.
Ability to copy and paste steps between recipes in process config.
Addition of screen in system config to configure and experiment with platen indexing.
Removal of Max Quantity setting and addition of quantity edited via textbox and automatically enforced limits.
Removal of dedicated screen for entering text and addition of keyboard with an X for cancel and a checkmark for confirmation.
Process config tab D, tolerance tab, now always shown (was previously hidden).
Automatic Load Cell calibration consistently takes under 30 seconds.

Download available Here

If you have any questions, contact the FOC sales staff!

Trade Shows

The Domaille 5400 Automated Fiber Optic Polishing Machine Suite - Package will be at the following trade show(s)*:

*subject to change, please confirm with the Fiber Optic Center team
