LightTube 1.2mm Round Breakout Tubing - PVC / Polypropylene - Red
B12506040RD00
LightTube 1.2mm Round Breakout Tubing with PVC Outer Jacket and 600x400μm Polypropylene Inner Tube for 250μm Fiber - Red
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters

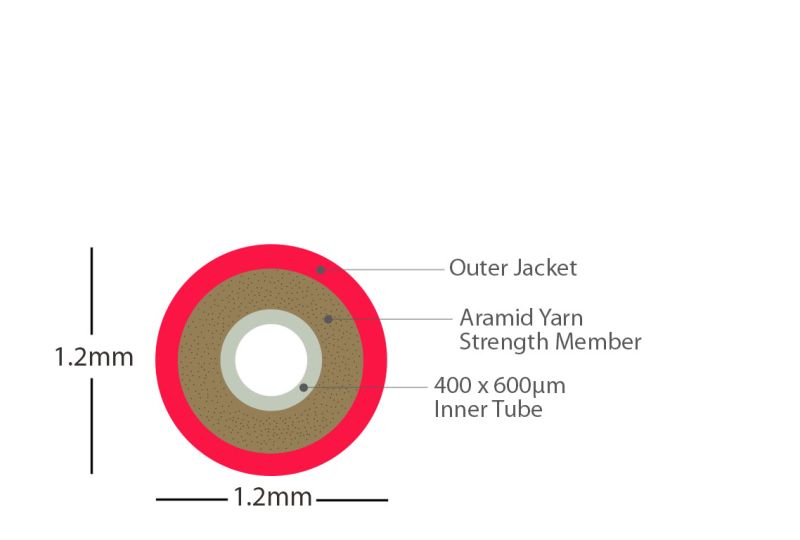

The Opticonx LightTube™ 1.2mm Round Breakout Tubing is used for breaking out 250μM buffered fiber to 1.2 breakouts for terminating with any industry standard fiber optic connector. The tubing is constructed with an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping and a color coded jacket.
Features:
Features:
- Smooth fiber insertion
- Low shrinkage
- RoHS & REACH compliant
- Custom print legends and striping available
- Length markers available
- Pull string available
- Simplex or Duplex construction
- Outer Jacket Material: PVC
- Inner Tube Material: Polypropylene
- Inner Tube OD x ID mm: 600µm x 400µm (micron)
- Jacket Color: Red
- Operating Temperature: -20°C to +75°C (-4°F to 167°F)
- Shrinkage @ 85°C: < 2%
- Min Bend Radius, Installation: 4.01 cm
- Min Bend Radius, Service: 2.0 cm
