LightTube 2.0mm Duplex (ZIP) Tubing - PVC / Hytrel(TPE) - Aqua

Z20509250AQ00

LightTube 2.0mm Duplex (ZIP) with PVC Outer Jacket and Hytrel(TPE) Inner Tubes for 2 x 250μm Fiber - Aqua

Price per Meter / $49.00 Cut Charge for Lengths < 1524 Meters

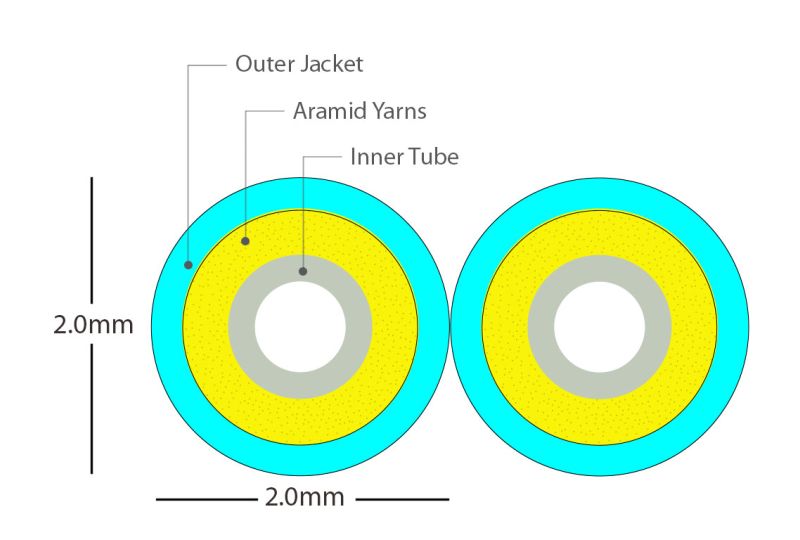

Opticonx LightTube™ 2.0mm Breakout tubing is used for breaking out 250 or 900μm buffered fiber to 2mm breakouts for terminating with any industry standard fiber optic connector. The tubing is constructed with an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping and a color coded jacket.

Features:

Smooth Fiber Insertion
Low Shrinkage
ROHS and REACH compliant
Pull string available

Ordering Info for duplex (Zip), 250μm fiber:

Jacket Material: PVC
Outer Jacket Color: Aqua
Inner Tubing Material: TPE (Hytrel)
Inner Tube OD x ID mm: 900x500μm
Operating Temperature: -20°C to +75°C
Shrinkage @ 85°C: <2%
Min Bend Radius: 5.8cm Installation, 2.9cm Service
