LightTube 2.0mm Duplex (ZIP) Tubing - PVC / Hytrel(TPE) - Yellow
Z20509250YE00
LightTube 2.0mm Duplex (ZIP) with PVC Outer Jacket and Hytrel(TPE) Inner Tubes for 2 x 250μm Fiber - Yellow
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters

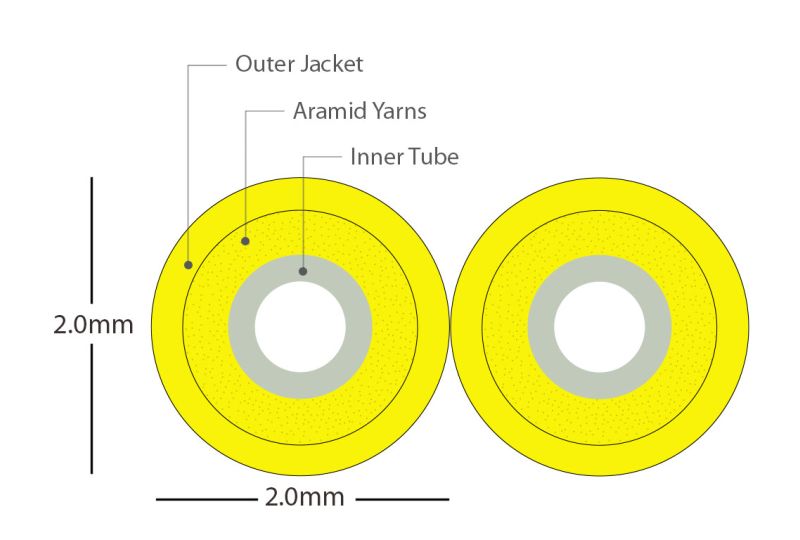

Opticonx LightTube™ 2.0mm Duplex (Zip) Breakout tubing is used for breaking out 250μm buffered fiber to 2.0mm breakouts for terminating with any industry standard fiber optic connector. The tubing is constructed with an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping and a color coded jacket.
Features:
Features:
- Smooth fiber insertion
- Low shrinkage
- RoHS & REACH compliant
- Custom print legends and striping available
- Length markers available
- Pull string available
- Jacket Material: PVC (Polyvinyl chloride)
- Jacket Color: Yellow
- Inner Tube Material: TPE (Hytrel®)
- Inner Tube OD x ID mm: 900μm x 500μm
- Operating Temperature: -20°C to +75°C(-4°F to 167°F)
- Shrinkage @ 85°C: < 2%
- Min Bend Radius, Installation: 5.8cm
- Min Bend Radius, Service: 2.9cm
- Weight: 7.0kg/km
