LightTube 2.0mm Round Breakout Tubing - Polyurethane / PVDF - Violet
B20809150VI00
LightTube 2.0mm Round Breakout Tubing with Polyurethane Outer Jacket and 900x500μm PVDF Inner Tube for 250μm Fiber - Violet (Purple)
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters

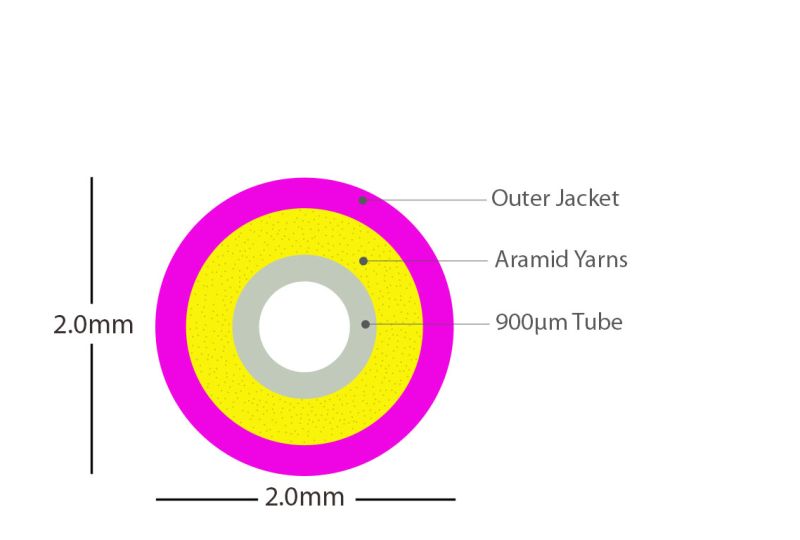

Opticonx LightTube™ 2.0mm Round Breakout Tubing is designed for breaking out simplex 250μm buffered fiber to 2mm breakouts, allowing termination with any industry-standard fiber optic connector. The tubing features an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping, and a color-coded jacket.
Features:
Features:
- Smooth fiber insertion
- Low shrinkage
- RoHS & REACH compliant
- Custom print legends and striping available
- Length markers available
- Pull string available
- Jacket Material: Polyurethane
- Jacket Color: Violet
- Inner Tube Material: PVDF (Polyvinylidene Fluoride Fluoropolymer)
- Inner Tube OD x ID mm: 900μm x 500μm (micron)
- Operating Temperature: -40°C to +85°C(-40°F to 185°F)
- Shrinkage @ 85°C: < 2%
- Min Bend Radius, Installation: 4 cm
- Min Bend Radius, Service: 2 cm
- Weight: 2.54kg/km
