LightTube 2.0mm Round Breakout Tubing - PVC / Polypropylene for 900μm - Orange
B20515011OR00
LightTube 2.0mm Round Breakout Tubing with PVC Outer Jacket and 1.5x1.1mm Polypropylene Inner Tube for 900μm Fiber - Orange
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters

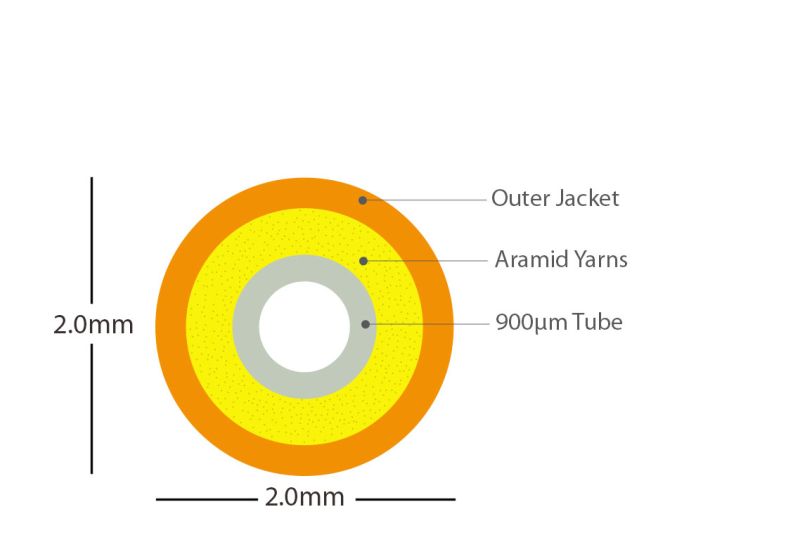

Opticonx LightTube™ 2.0mm Round Breakout Tubing is a simplex tube designed for breaking out 900μm buffered fiber to 2mm breakouts, allowing termination with any industry-standard fiber optic connector. The tubing features an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping, and a color-coded jacket.
Features:
Features:
- Smooth fiber insertion
- Low shrinkage
- RoHS & REACH compliant
- Custom print legends and striping available
- Length markers available
- Pull string available
- Jacket Material: PVC
- Jacket Color: Orange
- Inner Tube Material: Polypropylene
- Inner Tube OD x ID mm: 1.5mm x 1.1mm
- Operating Temperature: -20°C to +75°C(-4°F to 167°F)
- Shrinkage @ 85°C: < 2%
- Min Bend Radius, Installation: 4 cm
- Min Bend Radius, Service: 2 cm
- Weight: 2.54kg/km
