LightTube 4.4 x 2.4mm Ribbon Furcation Tubing - Hytrel(TPE) - Aqua
R120AQ00

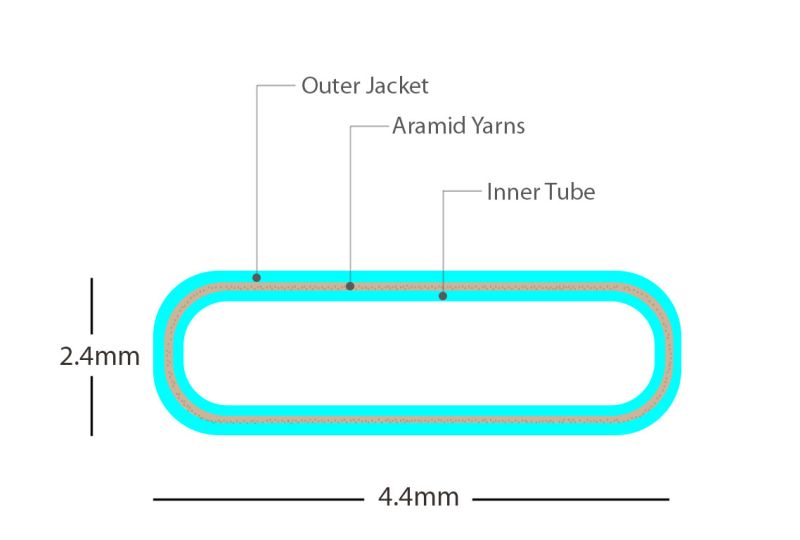

LightTube 4.4x2.4mm Ribbon Furcation Tubing with PVC Outer Jacket and 3.6x1.6mm Hytrel(TPE) Inner Tube for 1 x 12 250μm Fiber - Aqua
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
Opticonx LightTube™ R120XX00 Ribbon Furcation Tubing for breaking out, protection and management of bare 12 fiber ribbons for fusion and mechanical splicing is also offered. It is a single tube construction with no aramid yarn or outer jacket.
Features:
Features:
- Smooth fiber insertion
- Low shrinkage
- RoHS & REACH compliant
- Custom print legends and striping available
- Length markers available
- Pull string available
- Jacket Material: TPE (Hytrel®)
- Jacket Color: Aqua
- Jacket OD: 4.4mm x 2.4mm
- Inner Tube Material: N/A
- Inner Tube OD x ID mm: 3.6mm x 1.6mm
- Operating Temperature: -40°C to +80°C(-40°F to 176°F)
- Shrinkage @ 85°C: < 2%
- Min Bend Radius, Installation: 6.8cm
- Min Bend Radius, Service: 3.4cm
- Weight: 6.0kg/km
