LightTube 4.7 x 2.3mm Ribbon Breakout Tubing - PVC / PVDF - Aqua
RB1251AQ00
LightTube 4.7x2.3mm Ribbon Breakout Tubing with PVC Outer Jacket and 4.1x1.5mm PVDF Inner Tube for 1 x 12 250μm Fiber - Aqua
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters

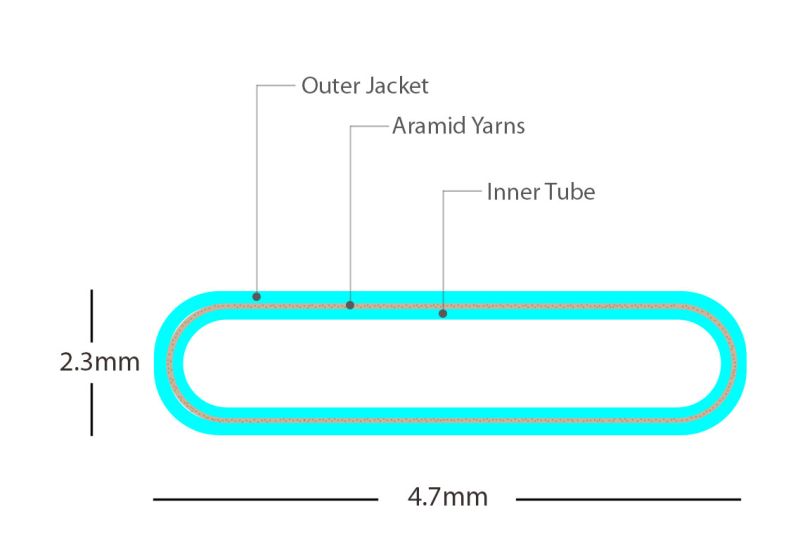

Opticonx LightTube™ RB1251XX00 Ribbon Furcation Tubing is used for breaking out tubing 12-fiber ribbons into color coded tubes for termination with MTP® / MPO fiber optic connectors. This is constructed with an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping and a color coded PVC jacket.
Features:
Features:
- Smooth fiber insertion
- Low shrinkage
- RoHS & REACH compliant
- Custom print legends and striping available
- Length markers available
- Pull string available
- Jacket Material: PVC
- Jacket Color: Aqua
- Jacket OD: 4.7mm x 2.3mm
- Inner Tube Material: Polypropylene
- Inner Tube OD x ID mm: 4.1mm x 1.5mm
- Operating Temperature: -20°C to +75°C (-4°F to 167°F)
- Shrinkage @ 85°C: < 2%
- Min Bend Radius, Installation: 9.0cm
- Min Bend Radius, Service: 4.5cm
- Weight: 9.0kg/km
