LightTube 900μm Furcation Tubing - Hytrel(TPE) - Slate

F09250SL

LightTube 900μm OD / 500μm ID Hytrel(TPE) Furcation Tubing for 250μm Fiber - Slate (Gray)

Price per Meter / $49.00 Cut Charge for Lengths < 1524 Meters

Opticonx LightTube 900μm furcation tubing is a single tube designed for the protection, termination and identification of 250μm fiber. Its available in 12+ different colors and translucent clear. This tubing is used for breaking out 250µm coated bare fiber into a 900µm protective tube for terminating with any industry standard connector.

Features:

Made to customer’s design specifications
Product is unprinted by default: custom print legend available
Smooth fiber insertion
Low shrinkage for superior resistance to aging and high temperatures
Ferrule adherence tested using industry-standard adhesives
Compliant to Directive 2002/95/EC (RoHS)

Characteristics:

Material: Hytrel
Color: Slate

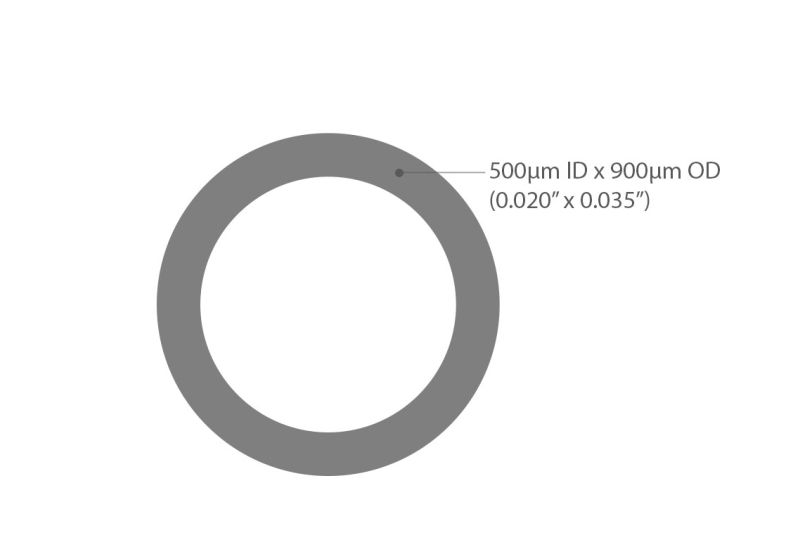

Tube ID x OD: 500 micron x 900 micron (0.020 x 0.035”)
Operating Temperature: -40°C to +85°C
Shrinkage @ 85°C: <2%
Min Bend Radius: 2.0” (5cm) Installation, 1.2” (3cm) In Service
