LightTube 900μm Furcation Tubing - Hytrel(TPE) - Violet
F09250VI
LightTube 900μm OD / 500μm ID Hytrel(TPE) Furcation Tubing for 250μm Fiber - Violet (Purple)
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
Opticonx LightTube™ 900μm furcation tubing is a single tube designed for the protection, termination and identification of 250μm fiber. Its available in 12+ different colors and translucent clear. This tubing is used for breaking out 250µm coated bare fiber into a 900µm protective tube for terminating with any industry standard fiber optic connector.
Features:
Features:
- Smooth fiber insertion
- Low shrinkage
- RoHS & REACH compliant
- Custom print legends and striping available
- Pull string available
- Custom constructions available
- Material: TPE (Hytrel®)
- Color: Violet

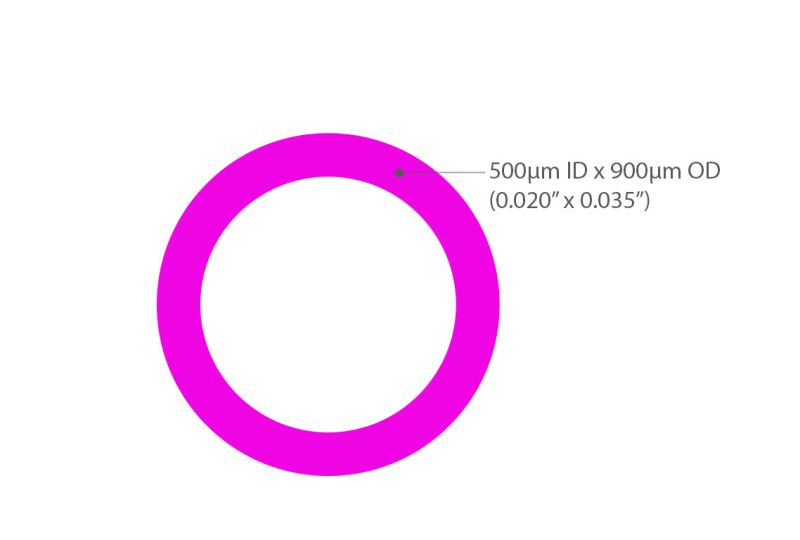

- Tube OD x ID mm: 900µm x 500µm (micron)
- Operating Temperature: -40°C to +85°C (-40°F to 185°F)
- Shrinkage @ 85°C: <2%
- Min Bend Radius: 2.0” (5cm) Installation, 1.2” (3cm) In Service
