LightTube 900μm Furcation Tubing - PVDF - Brown
F09150BR
LightTube 900μm OD / 500μm ID PVDF Furcation Tubing for 250μm Fiber - Brown. (Price Per Meter)
Opticonx LightTube 900μm furcation tubing is a single tube designed for the protection, termination and identification of 250μm fiber. Its available in 12+ different colors and translucent clear. This tubing is used for breaking out 250µm coated bare fiber into a 900µm protective tube for terminating with any industry standard connector.
Features:
Features:
- Made to customer’s design specifications
- Product is unprinted by default: custom print legend available
- Smooth fiber insertion
- Low shrinkage for superior resistance to aging and high temperatures
- Ferrule adherence tested using industry-standard adhesives
- Compliant to Directive 2002/95/EC (RoHS)
- Material: PVDF (Polyvinylidene fluoride)
- Color: Brown

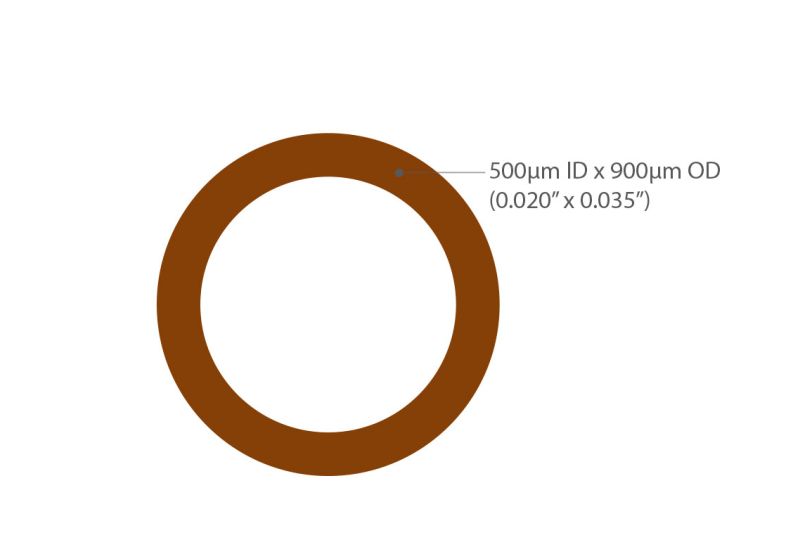

- Tube ID x OD: 500 micron x 900 micron (0.020 x 0.035”)
- Operating Temperature: -40°C to +85°C
- Shrinkage @ 85°C: <2%
- Min Bend Radius: 2.0” (5cm) Installation, 1.2” (3cm) In Service
