How Fiber Manufacturers Use a Shortcut Method to Choose the Right Die Size for Fiber Coating

Applying the protective coating to optical fiber is one of the most important steps in the entire manufacturing process. This thin layer of UV curable acrylate shields the glass from microbending, moisture, and handling damage. Getting the coating thickness right is essential — too thin and the fiber becomes fragile, too thick and it won’t fit into cables or connectors.

You might expect that determining the correct die size for this coating would require complex simulations or advanced fluid mechanics modeling. And while the physics has been analyzed in great detail, the real-world method used across the industry is surprisingly simple — and incredibly effective.

To understand why, let’s start with a clear picture of the coating applicator itself.

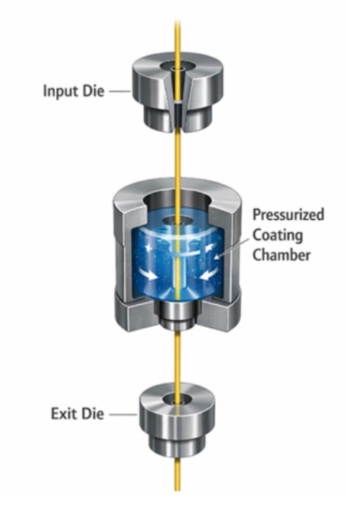

Figure 1 — Exploded 3 D Cutaway of an Optical Fiber Coating Applicator

This illustration shows the key components of a fiber coating applicator: the input die, the pressurized coating chamber, and the exit die. The fiber enters from the top, passes through the coating reservoir, and exits through the precision die that sets the final coating thickness.

What is a Fiber Optic Coating Die?

A fiber optic coating die is a precision component used in fiber manufacturing to apply protective coatings evenly around the optical fiber. It controls the flow and shape of the coating resin to maintain accurate coating thickness and concentricity, helping protect the glass fiber from damage and reducing signal loss caused by microbending.

After the fiber is drawn from the preform and cooled, it travels to the coating station, where it passes through a pressurized coating chamber situated between an input and output die. As the fiber moves through the chamber, it exits through the die to set the final coating thickness evenly.

Why Physics Alone Isn’t Used to Predict Coating Thickness

Researchers have spent decades modeling the coating process. The full physics includes:

• Viscous flow in a narrow annulus
• Pressure driven and drag driven flow components
• Shear dependent viscosity of UV acrylates
• Surface tension effects at the die exit
• Temperature dependent rheology

These models can predict coating thickness from first principles — but only if you know the exact viscosity curve, pressure gradient, die length, surface tension, and shear rate distribution. In real production environments, these parameters vary constantly.

So, while the physics are fascinating and absolutely valid, it’s not the most practical tool for day to day manufacturing.

Shortcut Method to Calculate Final Coating Thickness

Instead of solving equations, manufacturers use a simple empirical rule:

The final coating thickness is roughly proportional to the die gap.

Let:

• R_f = fiber radius
• R_d = exit-die radius
• g = R_d - R_f = Die gap
• t_c = final coating thickness

The empirical relationship is:

t_c ≈ kg

Where:

• k is an empirical factor
• For most UV-curable acrylates, k ≈ 0.8–0.9

This means:

g ≈ t_c k

And the corresponding die diameter is:

D_d = D_f + 2g

This simple proportionality is why the shortcut works so well.

Why a Fiber Draw Trial Run Is Always Required

Even with a good estimate, the actual coating thickness depends on:

• The exact viscosity of the coating at operating temperature
• The pressure setting in the coating cup
• The draw speed
• Minor machining variations in the die

Because of these variables, every manufacturer performs a short trial draw after installing a new die.

During this trial:

1. The fiber is drawn at the target speed
2. The coating thickness is measured
3. The actual thickness is compared to the target
4. A corrected die size is calculated

This fiber drawing process is fast, reliable, and extremely predictable.

Using Two Iterations to Achieve Final Coating Thickness

In nearly every fiber production environment, the workflow looks like this:

1. Estimate the die size using the empirical ratio
2. Run a short draw
3. Measure the coating thickness
4. Adjust the die size
5. Confirm with a second short draw

Because the relationship between die gap and coating thickness is nearly linear, two iterations are almost always enough to hit the target thickness.

This is why the empirical method has become the standard: it’s fast, simple, and accurate.

Why This Shortcut Method Works So Well

Even though the underlying physics is complex, the coating process is dominated by smooth, viscous flow in a narrow gap. In this regime, the relationship between die gap and coating thickness is stable and predictable.

In other words:

• The physics explains why the shortcut works
• The shortcut is what makes production efficient

It’s a perfect example of engineering pragmatism.

Final Thoughts

Die sizing for optical fiber coating blends theory and practice beautifully. The detailed physics provides confidence and understanding, but the empirical method delivers results — quickly, reliably, and with minimal complexity.

This is why fiber manufacturers around the world rely on the same simple approach: estimate, draw, measure, adjust. Two iterations, and you’re done.
