LightTube 2.0mm Round Breakout Tubing - LSZH Polyurethane (HFFR TPU) / PVDF - Yellow

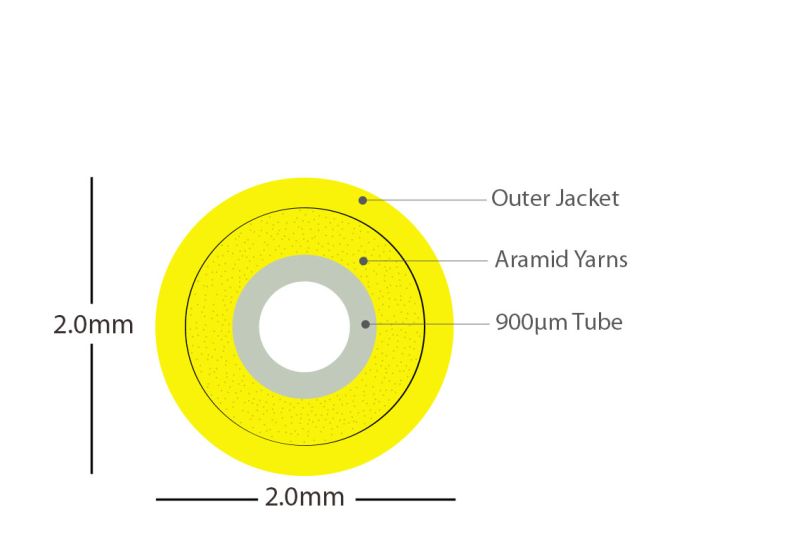

Opticonx LightTube™ 2.0mm Round Breakout Tubing is designed for breaking out simplex 250μm buffered fiber to 2mm breakouts, allowing termination with any industry-standard fiber optic connector. The tubing features an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping, and a color-coded jacket.

Features:

• Smooth fiber insertion
• Low shrinkage
• RoHS & REACH compliant
• Custom print legends and striping available
• Length markers available
• Pull string available

Characteristics:

• Jacket Material: LSZH Polyurethane (HFFR TPU)
• Jacket Color: Yellow
• Inner Tube Material: PVDF (Polyvinylidene Fluoride Fluoropolymer)
• Inner Tube OD x ID mm: 900μm x 500μm (micron)
• Operating Temperature: -40°C to +85°C(-40°F to 185°F)
• Shrinkage @ 85°C: < 2%
• Min Bend Radius, Installation: 4 cm
• Min Bend Radius, Service: 2 cm
• Weight: 2.54kg/km

To find additional tubing product options, please visit our Furcation Tubing Selection Page and use our Furcation Tubing Matrix to select by Type of Tubing, Jacket Material, Jacket Color, Inner Tube Material, Inner Tube OD x ID, Operating Temperature, Shrinkage @ 85°C, Weight, Installation and Service Minimum Bend Radius to find the product and how to request a quote!
