LightTube 2.0mm Round Breakout Tubing - PVDF / PVDF - Violet
B20109150VI00
LightTube 2.0mm Round Breakout Tubing with PVDF Outer Jacket and 900x500μm PVDF Inner Tube for 250μm Fiber - Violet (Purple)
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters
1524 Meter Standard Reel Length / $49.00 Cut Charge for Lengths < 1524 Meters

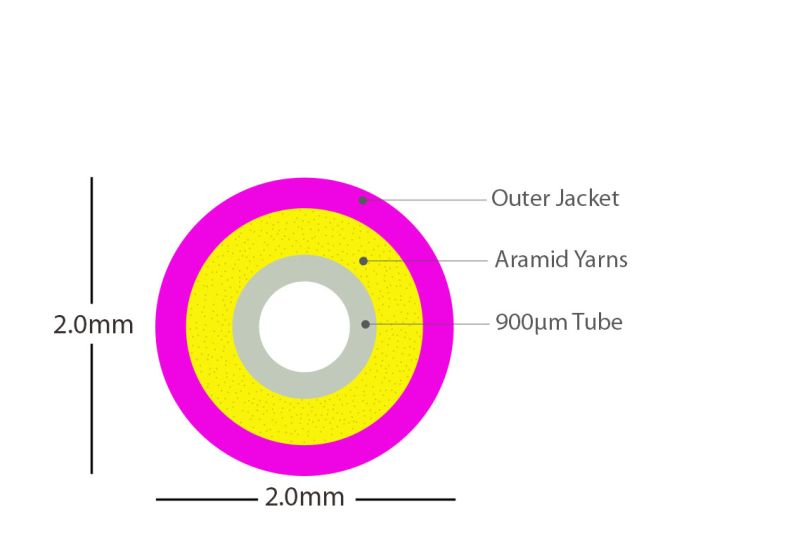

Opticonx LightTube™ 2.0mm Round Breakout Tubing is used for breaking out simplex 250μm buffered fiber to 2mm breakouts for terminating with any industry standard connector. The tubing is constructed with an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping and a color coded jacket.
Features:
Features:
- Smooth fiber insertion
- Low shrinkage
- RoHS & REACH compliant
- Custom print legends and striping available
- Length markers available
- Pull string available
- Simplex or Duplex construction
- Outer Jacket Material: PVDF
- Jacket Color: Violet
- Inner Tube Material: PVDF
- Inner Tube OD x ID mm: 900µm x 500µm (micron)
- Operating Temperature: -40°C to +125°C (-40°F to 257°F)
- Shrinkage @ 85°C: < 2%
- Min Bend Radius, Installation: 4 cm
- Min Bend Radius, Service: 2 cm
