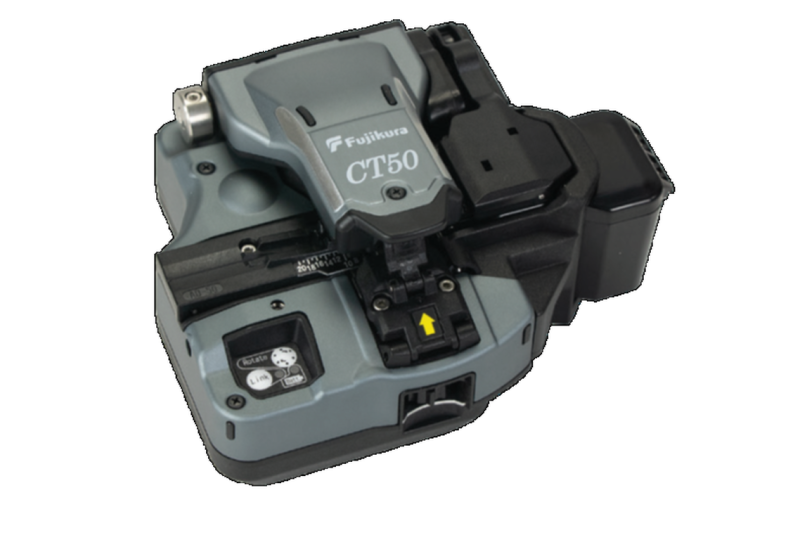

AFL CT-50 Single & Ribbon Fiber Cleaver
S017030
AFL Global CT-50 Single and Ribbon Fiber Cleaver. Equipped with the AD-50 adapter plate for cleaving single fibers to a 5-20mm cleave length. Requires fiber holders sold separately for cleaving up to 16 fiber ribbon with a 10mm cleave length.
The CT50 features automated blade rotation, unprecedented durability, and simplistic maintenance unseen with any other cleaver. Paired with a Bluetooth enabled Fujikura splicer, cleaver blade positions can be automatically advanced when needed based on cleave count or cleave quality. If automated rotation is not desired, the blade position can be advanced at the touch of a button, no tools required. The easy to read blade position indicator clearly displays the selected position. The Bluetooth® feature, along with simplified mechanical operation, increases overall productivity and reliability. The fiber clamp opens beyond 90 degrees and readies the blade for cleaving in the same motion. This allows easy viewing of the distance scale used to gauge cleave length. The 16-position blade yields 60,000 single-fiber cleaves, or 5,000 16-fiber ribbon cleaves. The built-in scrap collector conveniently stores fiber shards until they can be safely discarded.
The CT50 is an industry first cleaver ruggedized to withstand severe shock, including drops up to 30 inches. If needed, the CT50 is field serviceable with all precision components easily replaced in the field.
The CT50 is an industry first cleaver ruggedized to withstand severe shock, including drops up to 30 inches. If needed, the CT50 is field serviceable with all precision components easily replaced in the field.
