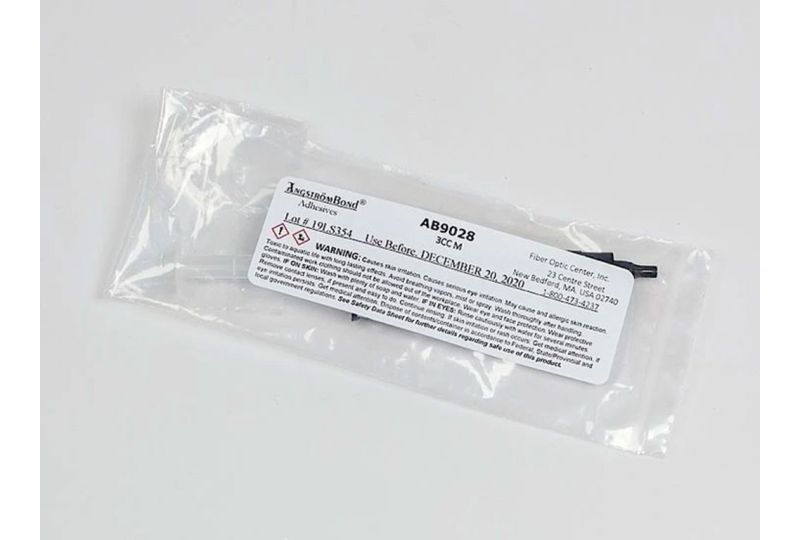

ÅngströmBond® AB9028 High Tg Adhesive, UV Cure (3cc Syringe)

The ÅngströmBond AB9028 UV Cure Optical Adhesive offers a very high glass transition temperature and exceptionally low shrinkage, making it ideal for bonding optical fibers into V-grooves. Available in a 3cc adhesive manual syringe.

Features of AB9028:

• High Tg adhesive
• Very low shrinkage
• Superior adhesion to glass and metal
• Ideal for high-humidity environments and hermetic sealing applications.
• Telcordia GR-1221 Compliant

Physical Properties:

• Viscosity @ 25°C: 1,000 cPs
• Glass Transition Temperature, Tg: 155°C
• Shore D Hardness: 90
• Cure Shrinkage: < 0.5%
• Elongation: 4%
• Modulus: 245,000 MPa
• Coefficient of Thermal Expansion (CTE):
  • Below Tg: 42 x 10^-6 in/in°C
  • Above Tg: 86 x 10^-6 in/in°C
• Weight Loss / Outgassing: 0.1% @ 125°C, 120 Hr
• Operating Temperature Range: -55°C to 200°C (-67°F to 392°F)
• Refractive index: 1.57

Handling Characteristics:

• Cure Schedule: 150 mW/cm² - 30-50 sec @300 to 500 nm
  • Post cure at 80°C for 60min recommended

See Datasheet for additional properties, storage and handling notes
