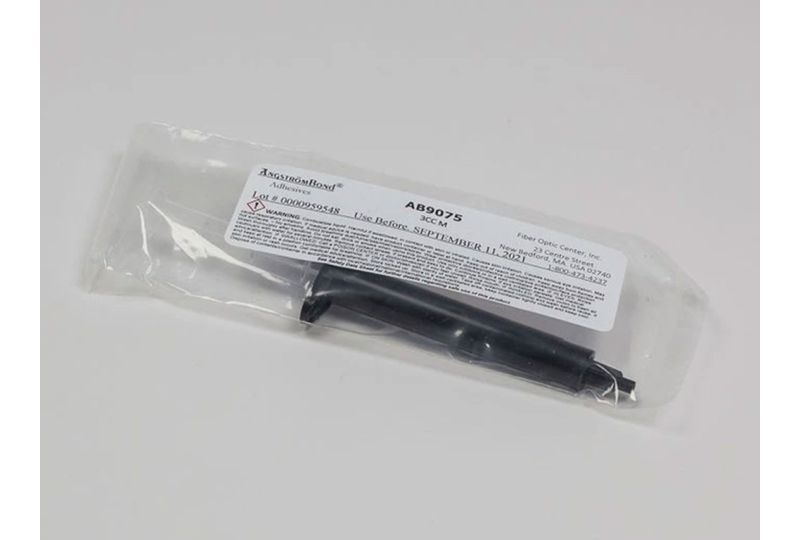

ÅngströmBond^® AB9075 Flexible Optical Adhesive, UV Cure (3cc Syringe)

The ÅngströmBond® AB9075 is a very flexible and clear adhesive, offering low viscosity. Designed for bonding plastics, glass, and ceramics, this optical adhesive cures under UV/Visible light. It also provides a low-stress solution ideal for applications demanding superior optical transmission. Available in a 3cc manual adhesive syringe.

Physical Properties:

• Viscosity @ 25°C: 550 cPs
• Shore A Hardness: 20
• Refractive index: 1.49
• Glass Transition Temperature, Tg: -40°C (degree celsius); Tg: -40°F (degree Fahrenheit)
• Operating Temperature Range: -50°C to 125°C; -58°F to 257°F
• Optical transmission: >98% @ 600– 2000nm, 10um

Handling Characteristics:

• Cure Schedule: 100-300 mW/cm² -10 to 30 sec - @320-420 nm

See Datasheet for additional properties, storage and handling notes
