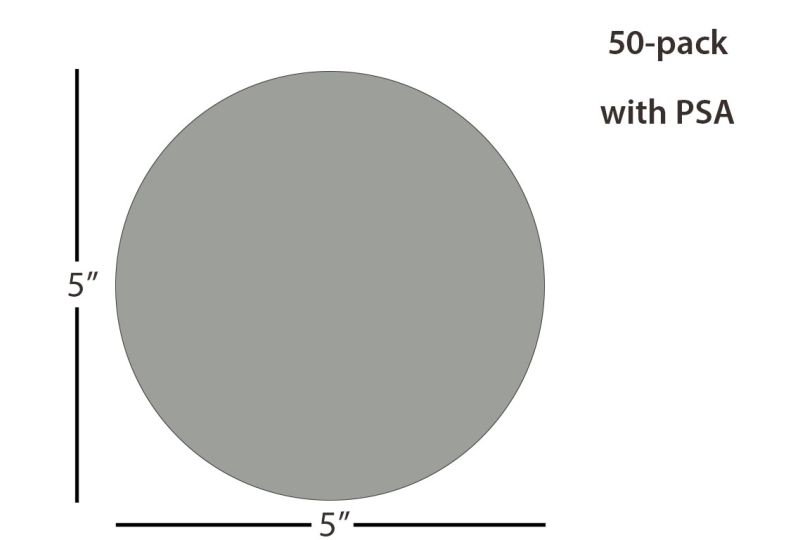

ÅngströmBrush® Ultimas-F SiOx Flock Pile Lapping Film Disc - 5 inch, PSA

The ÅngströmBrush® Ultimas-F SiOx Flock Pile Lapping Film is designed to consistently polish irregular glass surfaces to a mirror finish, time after time. This cutting-edge flock is the latest generation of final polishing materials for MT fiber optic polishing. Compared to traditional Cerium Oxide final polishing flock, the Ultimas-F Silicon Dioxide flock cleaning lapping film offers a superior fiber end-face finish with less scratching and reduced Core Dip, particularly in Multimode products.

The 5" disc is compatible with the Domaille APM-HDC-xxxx Series, Seikoh Giken SFP-5XX Series, and Ultra Tec UT-8812 or UT-8808 Polishing Machines.

Lapping Film Features:

• FO Type Name: SO26-MFPG
• Film Color: Grey
• Particle Type: Silicon dioxide film
• Flocking Pile Material: Nylon
• Flocking Pile Diameter: 1 d
• Flocking Pile Length: 0.4 mm
• Base Film Material: Polyethylene terephthalate
• Base Film Thickness: 2 mil (50 µm)
• Quantity: 50 discs
• PSA Backed Film
• Product Life: Guaranteed up to 5 years from the manufactured date

Pressure Sensitive Adhesive is only recommended when it is completely necessary. Once the film is stuck to the polish surface it cannot be removed and reused. This creates a potential and likely problem of debris adhering to the film that cannot be removed. Any debris that comes in contact with the fiber may cause a scratch. PSA will increase the cost of the lapping film.
