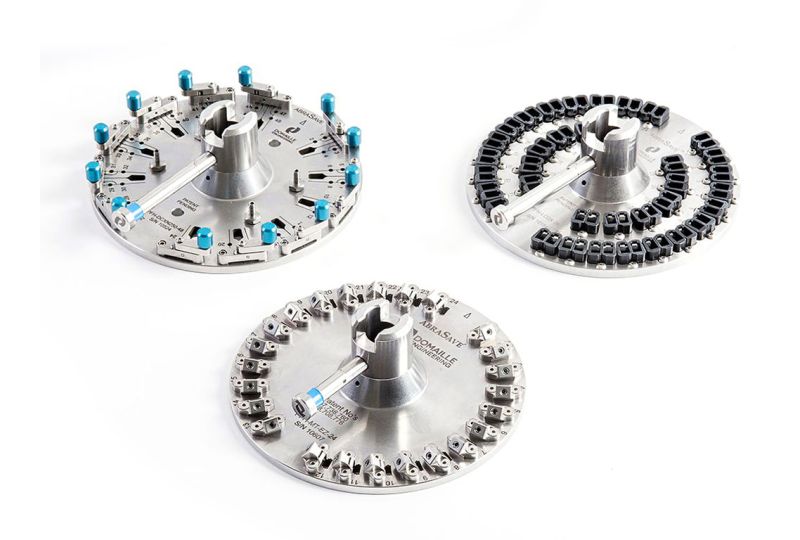

Domaille AbraSave® 'C' 24-Port 8° (degree) SN-MT/APC Connector Polishing Fixture - Rapid Clamp
PFC-SNMT-EZR8-24
Domaille Engineering AbraSave® 'C' SN-MT/APC 24-Port Polishing Fixture. Compatible with DE8800 inspection scopes.
The Domaille Engineering PFC-SNMT-EZR8-24 AbraSave® 'C' Polishing Fixture is designed to work with all Domaille polishing machines and the OptiSpec® DE8880 Inspection Microscope, securely holding SN-MT/APC connectors during the fiber optic polishing and inspection process. The MT-EZR Rapid Clamp is designed to reduce loading time, while minimizing protrusion height variation, maximizing yields and extends polishing film life.
With AbraSave fixtures and Unique Path Technology, each fiber follows its own designated path on the lapping film, reducing polishing time by up to 50% and extending the lifespan of lapping films by up to 90%. This ensures consistent polishing, minimizes height variations and improves yield.
Key Features:
With AbraSave fixtures and Unique Path Technology, each fiber follows its own designated path on the lapping film, reducing polishing time by up to 50% and extending the lifespan of lapping films by up to 90%. This ensures consistent polishing, minimizes height variations and improves yield.
Key Features:
- Design: 24-port fixture
- Connector Compatibility: SN-MT/APC Fiber Optic Connectors
- Polishing Angle: 8° (degree)
- Machine Compatibility: All Domaille Polishing Machines
