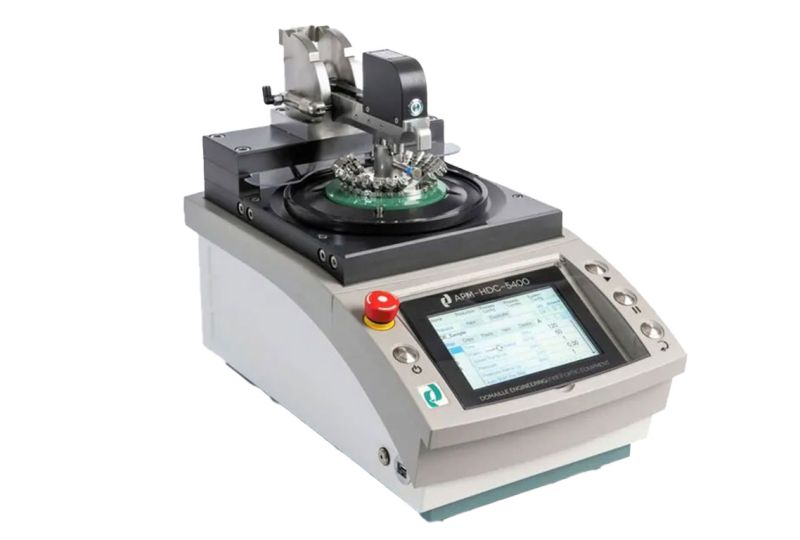

Domaille APM-HDC-5400-8 High Volume Programmable Fiber Optic Polishing Machine
APM-HDC-5400-8
Domaille Engineering High Volume PC-Based Programmable Polishing Machine w/Automated Process Control, 8" Platen and and Standard Accessories Including Drip Tray (PM12065F), Drip Tray Bracket (PM21025), Locking Collar (PM22097), High Volume Splash Guard (PM12068F) and a set of 70, 80 and 90 durometer locking rubber pads.
The Domaille APM-HDC-5400-8 is a high-volume, high-precision, advanced fiber optic polishing machine designed to provide reliable, automated polishing for fiber optic connectors. It retains all legacy features from previous models, including PC-based controls with a 7” touchscreen, programmable polishing pressure force up to 24 lbs., Micro-G® controls, and bi-directional 8” platen rotation and more! These features ensure precise control over polishing speed, pressure, soft start, and auto-calibration, and are combined with several new customer-driven enhancements for improved polishing performance.
New Features
New Features
- Abrasave+ software features for maximization of lapping film life
- Auto-Start on polishing steps allows users to polish with multiple pressures and speeds for a single polishing film which is great for denubbing & roughing epoxy beads
- Improved overarm handle for better ergonomics, reliability, and quality
- Illuminated arm push button displaying machine status by color code
- Enlarged overarm with beveled sides to maintain accuracy while adding cable clearance
- Redesigned overarm latch shaft for reduced friction and improved reliability
- Integrated Micro-G® controls for “zero” pressure polishing to specific lengths
- Built-in alert horn for operator notifications
Datasheet
Product Video
Video for the Domaille APM-HDC-5400-8 High Vol Programmable Polishing Machine Coming Soon!
Interested in a Domaille Polishing machine?
Interested in a Domaille Polishing machine?
Updates
Please note Product Change Notification:
Effective May 2025, the Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine will include the following improvements:
If you have any questions, contact the FOC sales staff!
Effective May 2025, the Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine will include the following improvements:
- Increased screen size to 10.1”.
- 6x more powerful system (CPU).
- No loading/waiting screens.
- Addition of swiping.
- Removed need for a Power On button; disabling the EPO achieves the same effect.
- Audio now delivered through HMI speaker.
- Play/Pause button to both play and pause a step.
- Reset button now in software.
- Platen indexing manually executed according to recipe parameters, if enabled, in production and process configuration.
- Ability to copy and paste steps between recipes in process config.
- Addition of screen in system config to configure and experiment with platen indexing.
- Removal of Max Quantity setting and addition of quantity edited via textbox and automatically enforced limits.
- Removal of dedicated screen for entering text and addition of keyboard with an X for cancel and a checkmark for confirmation.
- Process config tab D, tolerance tab, now always shown (was previously hidden).
- Automatic Load Cell calibration consistently takes under 30 seconds.
If you have any questions, contact the FOC sales staff!
Technical Support
A purchase from Fiber Optic Center includes access to a team of experienced technical experts with hands-on industry experience. From on-site support and training to troubleshooting, process development, yield improvement, evaluations, and calibrations, we provide the practical guidance and expertise needed to help you maximize productivity and achieve exceptional results. Click here for more details on the technical advantage of Fiber Optic Center.
