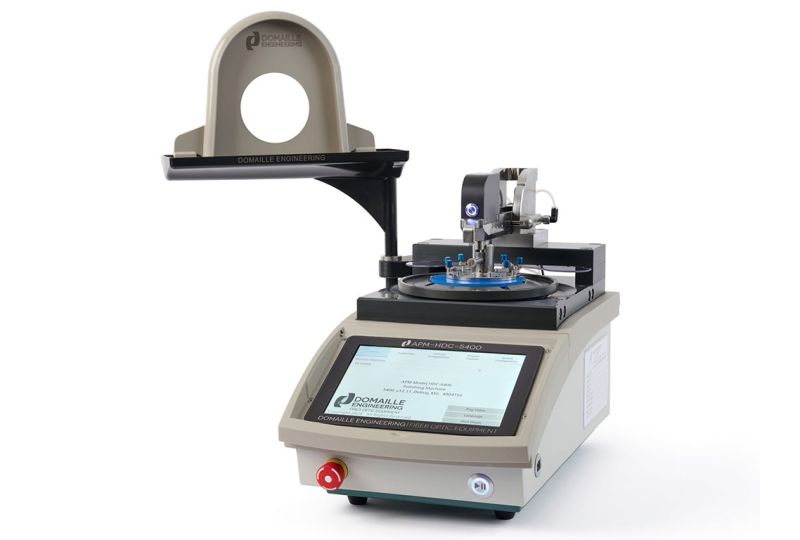

Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine
APM-HDC-5400
Domaille Engineering PC-Based Programmable Polishing Machine w/Automated Process Control and Standard Accessories Including Drip Tray (PM12065F), Drip Tray Bracket (PM21025), Locking Collar (PM22097), Splash Guard (PM12066F) and a set of 70, 80 and 90 durometer locking rubber pads.
The Domaille APM-HDC-5400 is a high-precision, advanced fiber optic polishing machine designed to deliver reliable, automated polishing for fiber optic connectors. It incorporates numerous advancements, including PC-based controls with a 10” touchscreen, programmable fiber polishing force up to 24 lbs, AbraSave+ technology, integrated Micro-G® controls, and bi-directional platen rotation.
Additional enhancements include an improved overarm handle and locking mechanism, an illuminated arm push button with machine status indication, and a built-in alert horn.
Together, these features provide precise control over polishing speed, pressure, soft start, and auto-calibration, while incorporating customer-driven improvements that enhance performance, consistency, and ease of operation.
Additional enhancements include an improved overarm handle and locking mechanism, an illuminated arm push button with machine status indication, and a built-in alert horn.
Together, these features provide precise control over polishing speed, pressure, soft start, and auto-calibration, while incorporating customer-driven improvements that enhance performance, consistency, and ease of operation.
New Features for the APM-HDC-5400:
- PC-based system with 10” swipe-action touchscreen
- Force programmable in 0.01 lb increments up to 24 lbs for ultra-precision control
- Integrated Micro-G® controls for ultra-precise, low-pressure polishing
- Delayed pressure start for de-nub and epoxy removal
- Programmable soft start and ramp-down for pressure and speed, with auto-start into next step
- Calibrated pneumatic force control with load cell feedback loop
- Auto calibration when using EZ CAL USB load cell
- Automated force compensation for partially populated fixtures
- Programmable speed control from 0–200 rpm
- Bi-directional platen rotation with platen indexing to locate at the programmed position
- AbraSave+ software to maximize lapping film life
- Improved overarm design for enhanced ergonomics, accuracy, and cable clearance
- Redesigned overarm latch mechanism for reduced friction and improved reliability
- Illuminated arm pushbutton with color-coded machine status
- Built-in alert horn for operator notifications
- CE rated
Core System Features:
- USB for machine-to-machine process replication and process backup
- Automatic pressure adjustment for varying numbers of connectors in the polishing fixture
- Step-by-step operator prompts for lapping film, polishing pad type, and lubrication
- Password protection for system configuration, process setup, and process transfer
- Force, speed, and time are displayed on-screen for step-specific feedback
- Programmable pressure and speed ramp for soft-start polishing
- Pivoting overarm for easy cleaning and quick fixture changes
- Standard 5” platen with optional 8” platen for flexibility in capacity and polishing film size
- Programmable lapping film change counter and maintenance section
- Drip tray and splash guard with swivel design for easy cleaning between steps
- Pneumatically controlled pressure for consistent polishing force regardless of ferrule length
- Quick-change fixtures for all standard fiber connector types, single and multi-fiber (fixtures sold separately)
- Available in English, German, Mandarin, Polish, and Spanish
Datasheet
Product Video
Video for the Domaille APM-HDC-5400-8 High Vol Programmable Polishing Machine Coming Soon!
Interested in a Domaille Polishing machine?
Interested in a Domaille Polishing machine?
Updates
Please note Product Change Notification:
Effective May 2025, the Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine will include the following improvements:
If you have any questions, contact the FOC sales staff!
Effective May 2025, the Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine will include the following improvements:
- Increased screen size to 10.1”.
- 6x more powerful system (CPU).
- No loading/waiting screens.
- Addition of swiping.
- Removed need for a Power On button; disabling the EPO achieves the same effect.
- Audio now delivered through HMI speaker.
- Play/Pause button to both play and pause a step.
- Reset button now in software.
- Platen indexing manually executed according to recipe parameters, if enabled, in production and process configuration.
- Ability to copy and paste steps between recipes in process config.
- Addition of screen in system config to configure and experiment with platen indexing.
- Removal of Max Quantity setting and addition of quantity edited via textbox and automatically enforced limits.
- Removal of dedicated screen for entering text and addition of keyboard with an X for cancel and a checkmark for confirmation.
- Process config tab D, tolerance tab, now always shown (was previously hidden).
- Automatic Load Cell calibration consistently takes under 30 seconds.
If you have any questions, contact the FOC sales staff!
Trade Shows
The Domaille APM-HDC-5400 Programmable Fiber Optic Polishing Machine will be at the following trade show(s)*:
- ANGA COM
- ECOC
- OFC
- SPIE Photonics West
