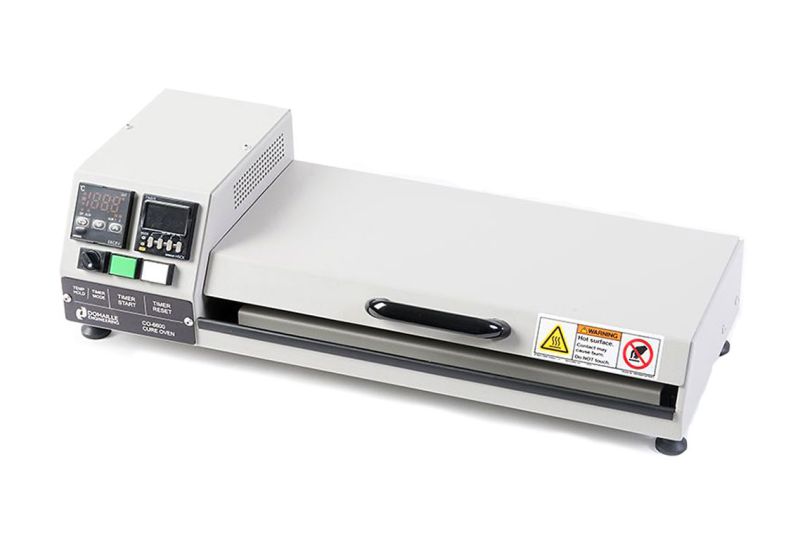

Domaille CO-6600 Cure Oven w/ TMT Tray - 220V

The Domaille Engineering CO-6600 Universal Epoxy Cure Oven(220V/240V) with TMT 24-position Horizontal Carrier Tray is designed specifically for curing 24 TMT ferrules simultaneously. It can also be used to cure any of the popular single-fiber connector designs, including FC, SC, ST, and LC (with a separate curing block). The oven holds up to 48 fiber optic connectors at a time. In addition, it is equipped with a tray system for easy loading and can reach a maximum temperature of 140°C.

The oven allows for two modes of curing operation: timer mode and temperature hold mode. Timer mode allows the oven to gradually increase to a selected temperature, maintain the temperature for a selected operating time, and then gradually decrease to room temperature by shutting off power to the heating element. The temperature hold mode maintains the curing oven at a constant selected temperature indefinitely.

Benefits at a Glance:

• Specifically designed for TMT ferrule epoxy curing with the tightest thermal pattern in the industry
• Maximum temperature 140° C
• Cures connectors in either horizontal or vertical position
• Utilizes carrier trays for EZ loading and maximum productivity
• May be configured to hold most connector styles
• Available in 120v or 240v configuration
• CE Rated
