Jetting V3 NE Fiber Blowing Machine
V3-CAN
Jetting V3-NE 1800 N with Easy Joystick Controller.
Delivered in hard case with inside custom foam design.
US/NA air connections. Incl . 12 mm cable guides, incl. service kit consisting of bottles of duct lube, microduct lube, pneumatic oil, machine seals & fixture in aluminium.
Delivered in hard case with inside custom foam design.
US/NA air connections. Incl . 12 mm cable guides, incl. service kit consisting of bottles of duct lube, microduct lube, pneumatic oil, machine seals & fixture in aluminium.

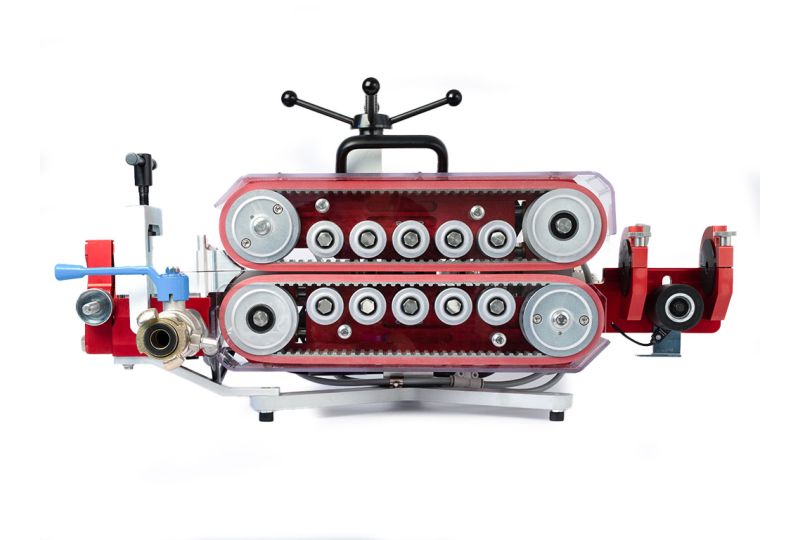

The Jetting V3 NE Fiber Blowing Machine is a robust, pneumatic-operated tool designed for installing single fiber optic cables and relining multiple micro ducts. It handles cable diameters from 4 to 40 mm (0.16 to 1.57 inches) and duct sizes from 10 to 63 mm (0.39 to 2.48 inches). Constructed with anodized aluminum, this machine is both lightweight and durable, making it an ideal solution for heavy-duty fieldwork. The innovative joystick controller, coupled with agile motors, provides precise and optimal installation control, while its gentle operation ensures cable integrity.
The machine includes an electronic counter for speed and distance, and its real-time display monitors speed, distance, and duct pressure. With a maximum speed of 50 m/min (165 ft/min) and a pushing force of up to 1800 N (404.7 lbs), it offers exceptional performance. A quick-release valve for duct air and an optional sub-ducting kit allow for the simultaneous installation of multiple micro ducts, enhancing versatility.
Other Features:
The machine includes an electronic counter for speed and distance, and its real-time display monitors speed, distance, and duct pressure. With a maximum speed of 50 m/min (165 ft/min) and a pushing force of up to 1800 N (404.7 lbs), it offers exceptional performance. A quick-release valve for duct air and an optional sub-ducting kit allow for the simultaneous installation of multiple micro ducts, enhancing versatility.
Other Features:
- Powered by double motors for efficient and reliable performance.
- Joystick controller supports forward and reverse functions, with adjustable clamping force for cable protection.
- Long contact surface ensures minimal stress on the cable during installation.
- Displays speed, distance, and duct pressure, with an electronic counter for precise measurements.
- Install multiple micro ducts, such as 7×7/3.5 mm or 4×14/10 mm, in a 50 mm tube simultaneously.
- Max Pressure: 16 Bar (232 psi)
- Max Speed: 50 m/min (165 ft/min)
- Cable Diameter: 4–40 mm (0.16–1.57 inches)
- Duct Diameter: 10–63 mm (0.39–2.48 inches)
- Weight: 25 kg (55.1 lbs)
- Air Connection: 1” Claw connector
- Dimensions (WxHxD): 700 x 400 x 590 mm (27.6 x 15.7 x 23.2 inches)
Datasheet
Literature
Users Guide
Product Video
Training Video
Technical Support
