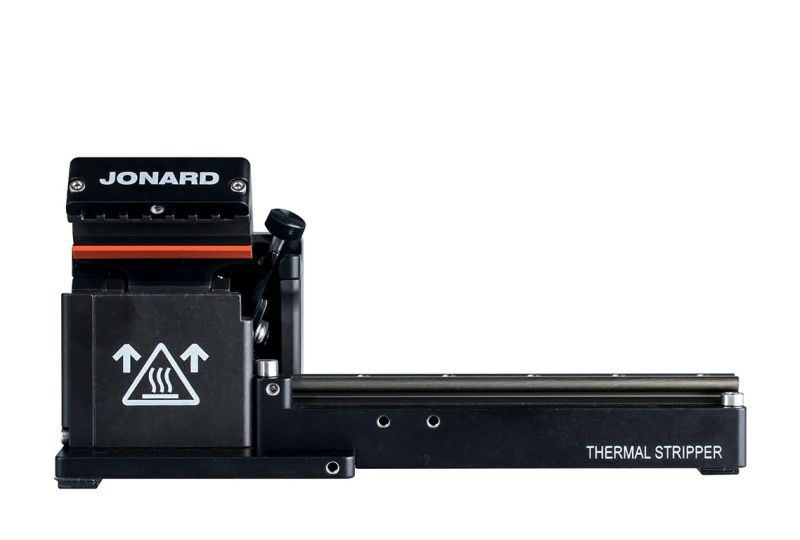

Jonard Tools® TSAB-40 Thermal Single Fiber Stripper - Adjustable Blade

The Jonard Tools® TSAB-40 Thermal Stripper is a compact, easy-to-use fiber optic stripping tool designed to heat and strip coatings from optical fibers. Its heater reaches up to 392°F (200°C), allowing users to remove extremely difficult or baked-on coatings and, in some cases, fluoroacrylate undercoatings.

This adjustable blade thermal stripper supports fibers with cladding diameters from 30–1000 µm and buffer diameters up to 1200 µm, including standard 250 µm, 400 µm, and 900 µm fibers. Temperature and strip time are adjustable, making it versatile for a wide range of acrylate coatings and fiber sizes.

Features:

• Heater adjustable up to 392°F (200°C) for extreme coatings
• Can remove some fluoroacrylate undercoatings using high heat
• Adjustable temperature and time settings for various coatings and cladding sizes
• Supports fibers with 30–1000 μm cladding and buffer diameters up to 1200 μm
• Compact, low-maintenance benchtop design
• Compatible with Fitel, Fujikura, and Ericsson fiber holder platforms, and a Universal Clamp for LDF or other fibers (sold separately)
• Package includes: Adjustable Thermal Stripper, Power Supply, Power Cord, Cleaning Brush

Specifications:

• Blade Type: Adjustable
• Supported Fiber Buffers: ≤ 1200 µm
• Supported Fiber Types: 30-1000µm cladding
• Adjustable Temperature Range: 140–392°F (60–200°C), or ambient
• Adjustable Heat Time Range: 0-30 seconds (2-second increments)
• External Power Supply: 100-240 VAC, 47-63 Hz
• Dimensions: 5.1" x 2.9" x 2.8" (129.5 mm x 73.5 mm x 71 mm)
• Weight: 2.79 lbs (1.266 Kg)
• UPC #: 811490011243
