LightTube 2.0mm Round Breakout Tubing - PVC / Hytrel(TPE) - Brown

B20509250BR00

LightTube 2.0mm Round Breakout Tubing with PVC Outer Jacket and 900x500μm Hytrel(TPE) Inner Tube for 250μm Fiber - Brown. (Price Per Meter)

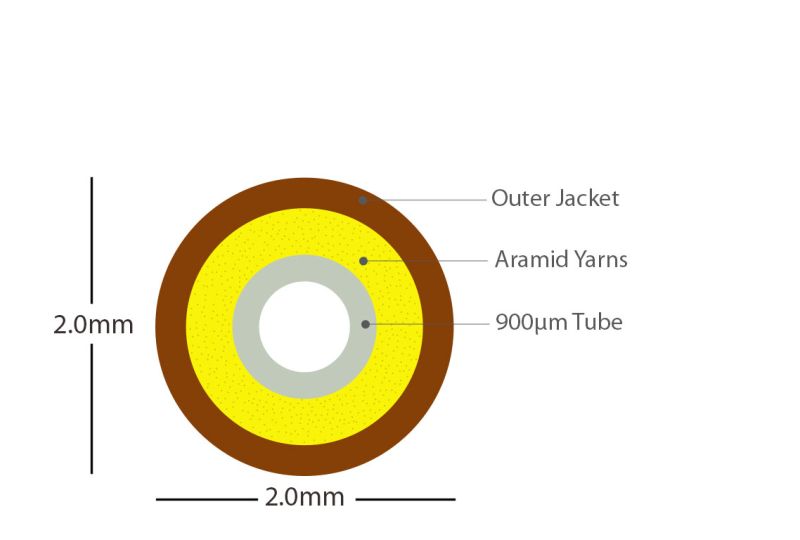

Opticonx LightTube 2mm Round Breakout Tubing is a simplex or duplex tube designed for breaking out 250μm buffered fiber to 2mm breakouts, allowing termination with any industry-standard connector. The tubing features an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping, and a color-coded jacket for easy identification.

Features:

Smooth Fiber Insertion
Low Shrinkage
ROHS, REACH and ITAR-compliant

Characteristics:

Inner Tube Material OD x ID mm: 900μm x 500μm TPE (Hytrel) Inner Tube for 250μm Fiber
Strength Member: Dielectric Aramid Yarn Fibers
Jacket Material OD mm: PVC 2mm
Jacket Color: Brown
Operating Temperature: -20°C to +75°C
Shrinkage @ 85°C: <2%
Min Bend Radius: 4cm Installation
