LightTube 3.0mm Round Breakout Tubing - PVC / Polypropylene - Black

B30515011BK00

LightTube 3.0mm Round Breakout Tubing with PVC Outer Jacket and 1.5x1.1mm Polypropylene Inner Tube for 900μm or 12-Fiber 250μm bundles - Black

Price per Meter / $49.00 Cut Charge for Lengths < 1524 Meters

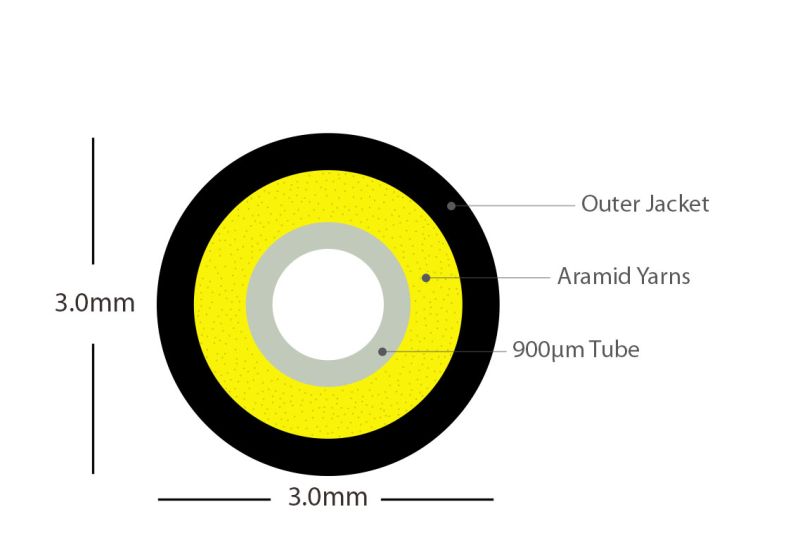

Opticonx LightTube™ 3.0mm Breakout tubing is used for breaking out 250 or 900μm buffered fiber to 3mm breakouts for terminating with any industry standard fiber optic connector. The tubing is constructed with an inner tube for the inserted fiber, a layer of aramid yarn for stain relief and connector crimping and a color coded jacket.

Features:

Smooth Fiber Insertion
Low Shrinkage
ROHS and REACH compliant
Pull string available

Ordering Info for Simplex 900μm fiber:

Jacket Material: PVC
Outer Jacket Color: Black
Inner Tubing Material: Polypropylene
Inner Tube OD x ID mm: 1.5 x 1.1mm
Operating Temperature: -20°C to +75°C
Shrinkage @ 85°C: <2%
Min Bend Radius: 5.8cm Installation, 2.9cm Service
